Inline Connector End View (C3049)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

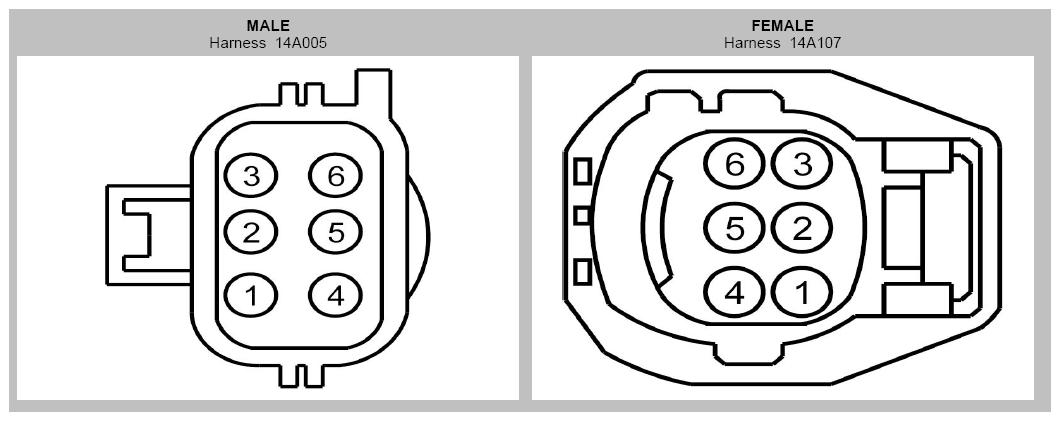

| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | VCA06 (WH-OG) | 20 | |
| 2 | RCA20 (BN) | 20 | |
| 3 | VCA04 (BU-OG) | 20 | |
| 4 | RCF21 (WH-VT) | 20 | |
| 5 | CCF21 (VT-WH) | 20 | |
| 6 | RCA18 (BN-GN) | 20 |
| Available Pigtail Kits | |
|---|---|

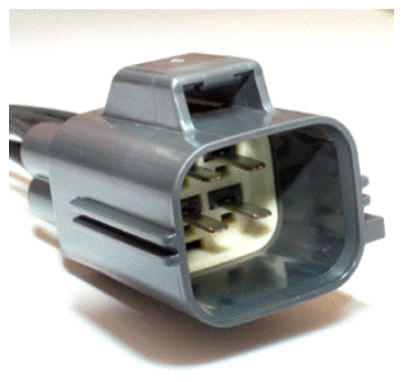

| Pigtail Kit Part Number WPT-163 | Service Part Number: 1U2Z-14S411-BUA Gauge: 14 Pin material: Tin Cavities: 6 Vehicle Uses:
|
