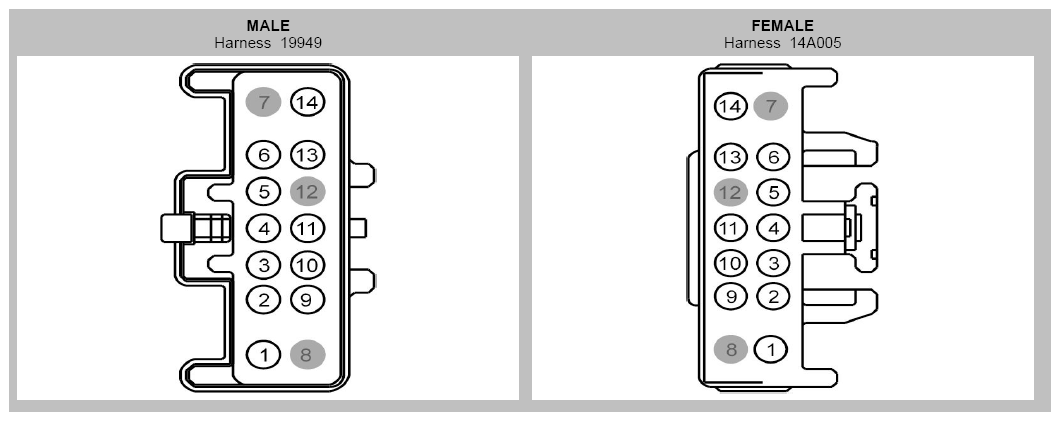

Inline Connector End View (C3007)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | CHA02 (BN-GN) | 12 | |
| 2 | CHA05 (BN-WH) | 20 | 14A005 |
| 2 | VHA25 (BN-VT) | 22 | 19949 |
| 3 | CH244 (GY) | 20 | 14A005 |
| 3 | CH244 (GY) | 22 | 19949 |
| 4 | CH243 (BU) | 22 | 19949 |
| 4 | CH243 (GY-BU) | 20 | 14A005 |
| 5 | CH242 (VT) | 22 | 19949 |
| 5 | CH242 (VT-BN) | 20 | 14A005 |
| 6 | RH111 (GY-BU) | 20 | 14A005 - with heated seats |
| 6 | RH111 (GY-BU) | 22 | 19949 - with heated seats |
| 6 | RH111 (GY-OG) | 20 | 14A005 - all others |
| 6 | RH111 (GY-OG) | 22 | 19949 - all others |
| 7 | * | * | |
| 8 | * | * | |
| 9 | LH111 (BN-RD) | 20 | 14A005 |
| 9 | LH111 (BN-WH) | 22 | 19949 |
| 9 | LH111 (BN-WH) | 22 | 19949 |
| 10 | VHA09 (VT-BN) | 22 | 19949 |
| 10 | VHA09 (VT-GN) | 20 | 14A005 |
| 11 | VHA18 (YE-GN) | 20 | 14A005 |
| 11 | VHA18 (YE-GN) | 22 | 19949 |
| 12 | * | * | 14A005 |
| 12 | VH414 (GN-BU) | 22 | 19949 |
| 13 | CH245 (BU-BN) | 22 | 19949 |
| 13 | CH245 (BU-RD) | 20 | 14A005 |
| 14 | GD149 (BK-GY) | 12 | 19949 |
| 14 | GD349 (BK-GY) | 12 | 14A005 |
