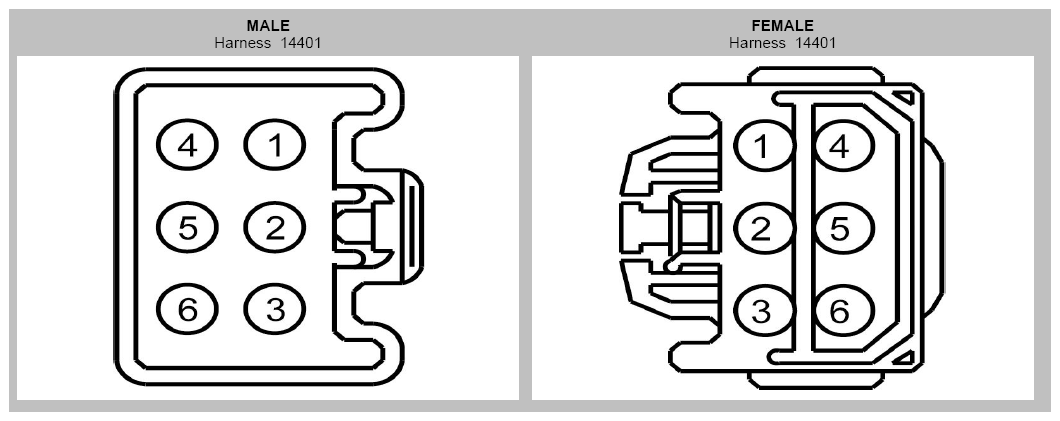

Inline Connector End View (C2608)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | * (*) | * | 14401 - FEMALE |
| 1 | SBB40 (VT-RD) | 12 | 14401 - MALE |
| 2 | * (*) | * | 14401 - FEMALE |
| 2 | SBB06 (BN-RD) | 12 | 14401 - MALE |
| 3 | * (*) | * | 14401 - FEMALE |
| 3 | SBB16 (VT-RD) | 12 | 14401 - MALE |
| 4 | * (*) | * | 14401 - FEMALE |
| 4 | GD215 (BK-GY) | 10 | 14401 - MALE |
| 5 | * (*) | * | 14401 - FEMALE |
| 5 | GD215 (BK-GY) | 10 | 14401 - MALE |
| 6 | * (*) | * | 14401 - FEMALE |
| 6 | GD215 (BK-GY) | 10 | 14401 - MALE |
