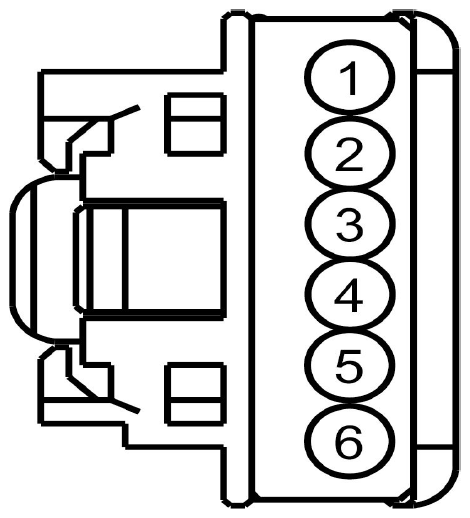

In-Vehicle Temperature/Humidity Sensor Connector End View (C2247)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | GD215 (BK-GY) | 20 | GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT | |
| 2 | VH414 (GN) | 26 | SENSOR - INCAR TEMP. | |
| 3 | LH111 (BN-WH) | 22 | CTRL MOD. - GENERIC VREF | |
| 4 | VH413 (WH) | 26 | SENSOR - HUMIDITY | |
| 5 | RH111 (GY-BU) | 22 | CTRL MOD. - GENERIC VREF RETURN | |
| 6 | CBP35 (YE-GY) | 20 | FUSE - 35 OR CIRCUIT BREAKER |
| Available Pigtail Kits | |
|---|---|

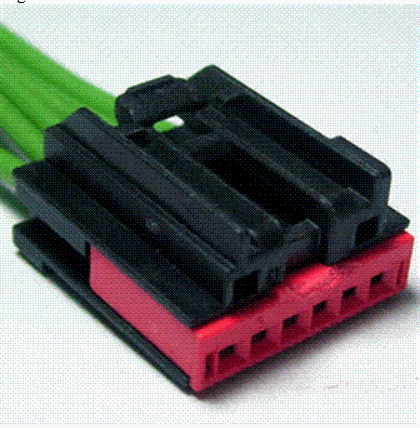

| Pigtail Kit Part Number WPT-1242 | Service Part Number: 3U2Z-14S411-MJB Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses
|

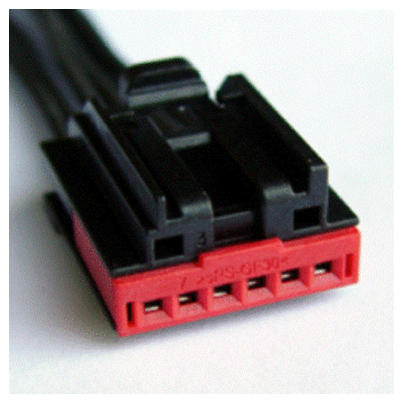

| Pigtail Kit Part Number WPT-440 | Service Part Number: 3U2Z-14S411-MJA Gauge: 20 Pin material: Tin Cavities: 6 Vehicle Uses
|
