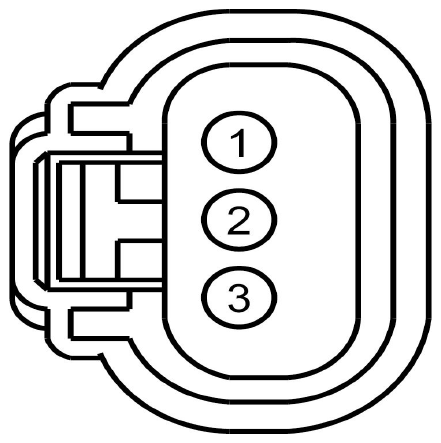

Fuel Tank Pressure (Ftp) Transducer Sensor Connector End View (C3123)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VE922 (VT-GN) | 20 | TRANSDUCER - FUEL TANK PRESSURE (FTP) | |
| 2 | RE407 (YE-VT) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN) | |
| 3 | LE230 (BN-BU) | 20 | CTRL MOD. - POWERTRAIN # REFERENCE VOLTAGE (VREF) |
| Available Pigtail Kits | |
|---|---|

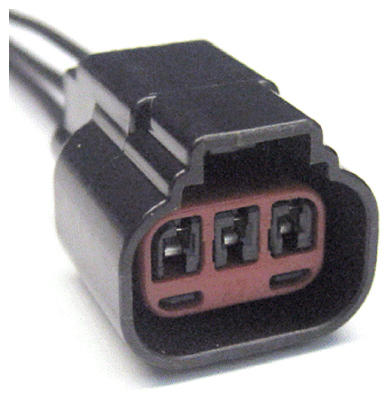

| Pigtail Kit Part Number WPT-990 | Service Part Number: 8U2Z-14S411-ZB Gauge: 14 Pin material: Tin (greased) Cavities: 3 Vehicle Uses
|

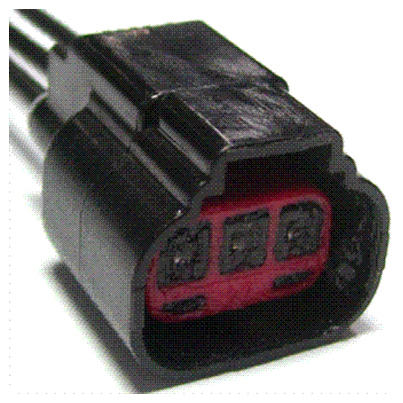

| Pigtail Kit Part Number WPT-921 | Service Part Number: 8U2Z-14S411-ZA Gauge: 16 Pin material: Tin Cavities: 3 Vehicle Uses
|
