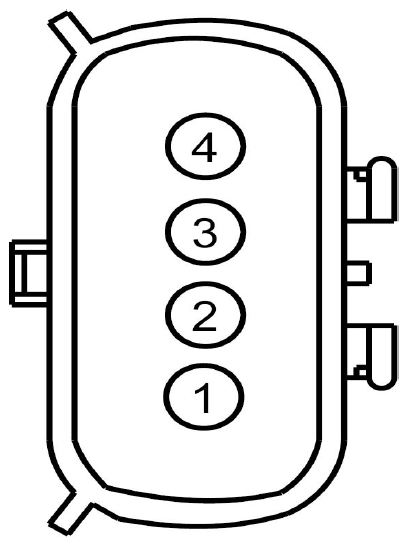

Front Park/Turn/Warn Led Assembly, Right Connector End View (C1708)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
SAP05 (VT) |
18 |
POLICE - WIGWAG SWITCH POWER |
|
| 2 |
CAP03 (GN-WH) |
18 |
POLICE - WIGWAG SCANLOCK POWER RIGHT HAND |
|
| 3 |
CAP06 (GY-OG) |
18 |
POLICE - WIGWAG SYNC |
|
| 4 |
GD123 (BK-GY) |
18 |
GROUND - FENDER FRONT RIGHT |
|
