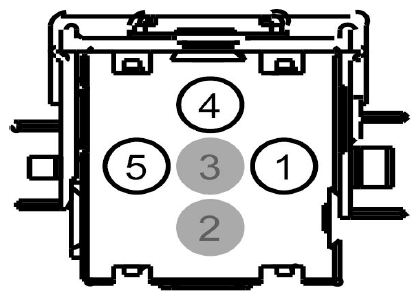

Flasher Relay Connector End View (C1828)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
CAP22 (BN-YE) |
16 |
POLICE - FLASHER FRONT POWER |
|
| 2 |
* |
* |
Not Used |
|
| 3 |
* |
* |
Not Used |
|
| 4 |
CAP21 (YE-VT) |
16 |
POLICE - FLASHER FRONT RIGHT |
|
| 5 |
CAP20 (VT-BN) |
16 |
POLICE - FLASHER FRONT LEFT |
|
