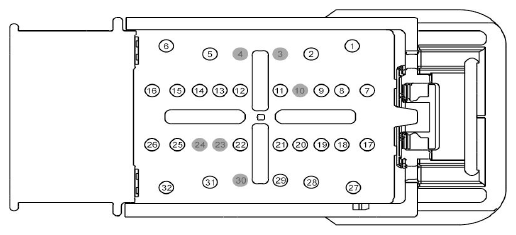

Body Control Module (BCM) Connector End View (C2280D)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | SBP03 (BU-RD) | 12 | FUSE - 3 OR CIRCUIT BREAKER | XLT, Limited, Sport |
| 2 | SBP05 (GY-RD) | 16 | FUSE - 5 OR CIRCUIT BREAKER | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | SBP02 (YE-RD) | 18 | FUSE - 2 OR CIRCUIT BREAKER | police |
| 6 | SBP01 (RD) | 12 | FUSE - 1 OR CIRCUIT BREAKER | XLT, Limited, Sport |
| 7 | CBP33 (WH-BN) | 20 | FUSE - 33 OR CIRCUIT BREAKER | |
| 8 | CBP34 (VT-BN) | 20 | FUSE - 34 OR CIRCUIT BREAKER | all others |
| 8 | CBP34 (VT-BN) | 14 | FUSE - 34 OR CIRCUIT BREAKER | with rear view camera |
| 9 | SBP21 (GY-RD) | 20 | FUSE - 21 OR CIRCUIT BREAKER | |
| 10 | * | * | Not Used | |
| 11 | SBP07 (WH-RD) | 20 | FUSE - 7 OR CIRCUIT BREAKER | |
| 12 | CLS18 (GY-BN) | 18 | CTRL MOD. - STOP/TURN LEFT (INBOARD) | |
| 13 | CLS28 (BU-WH) | 20 | CTRL MOD. - RELAY REVERSE LAMP CONTROL (RLC) | |
| 14 | CLS52 (BN) | 18 | CTRL MOD. - STOP/TURN RIGHT MIDDLE | |
| 15 | CLS19 (VT-OG) | 18 | CTRL MOD. - STOP/TURN RIGHT (INBOARD) | |
| 16 | GD233 (BK) | 16 | GROUND - COWL SIDE/PILLAR A LEFT | |
| 17 | CBP32 (GN-VT) | 18 | FUSE - 32 OR CIRCUIT BREAKER | |
| 18 | CBP40 (YE-GN) | 22 | FUSE - 40 OR CIRCUIT BREAKER | |
| 19 | CBP41 (BU) | 22 | FUSE - 41 OR CIRCUIT BREAKER | |
| 20 | SBP09 (RD) | 20 | FUSE - 9 OR CIRCUIT BREAKER | |
| 21 | CPL51 (BU-GN) | 16 | CTRL MOD. - DOOR LOCK # DRIVER UNLOCK | without IA |
| 22 | CLN09 (YE-GN) | 20 | RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING) | |
| 23 | * | * | Not Used | |
| 24 | * | * | Not Used | |
| 25 | GD233 (BK) | 16 | GROUND - COWL SIDE/PILLAR A LEFT | |
| 26 | CPL11 (GY-BN) | 14 | CTRL MOD. - DOOR LOCK # ALL LOCK | without IA |
| 27 | CBP01 (BU) | 12 | FUSE - 48 OR CIRCUIT BREAKER | |
| 28 | CPL84 (GN-BN) | 18 | RELAY - LIFTGATE/DECKLID RELEASE | police |
| 29 | CPL84 (GN-BN) | 18 | RELAY - LIFTGATE/DECKLID RELEASE | without IA |
| 30 | * | * | Not Used | |
| 31 | CPL52 (VT-GY) | 14 | CTRL MOD. - DOOR LOCK - PASSENGER DOORS UNLOCK (ALL EXCLUDING DRIV-ER) | without IA |
| 32 | SBP19 (BU-RD) | 16 | FUSE - 19 OR CIRCUIT BREAKER |
