Adjustable Pedal Motor Connector End View (C2003)

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

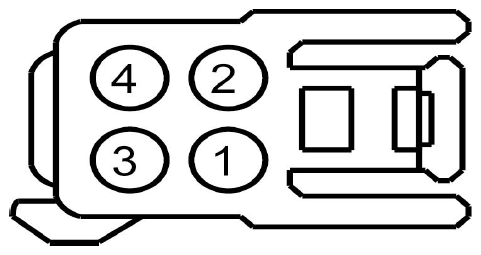

Fig 1: Identifying Adjustable Pedal Motor Connector End View (C2003)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	CPP05 (WH-VT)	20	CTRL MOD. - MOTORS ADJUSTABLE STEERING COLUMN COMMON
2	CPP01 (WH-OG)	20	CTRL MOD. - MOTOR ADJUSTABLE PEDAL FORWARD
3	RPP06 (GN)	22	CTRL MOD. - SENSOR ADJUSTABLE PEDAL
4	LPP08 (YE-BU)	22	CTRL MOD. - SENSOR ADJUSTABLE PEDAL

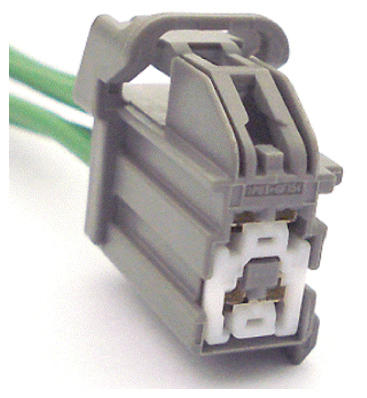

Available Pigtail Kits
Pigtail Kit Part Number WPT-977	Service Part Number: 3U2Z-14S411-LUB Gauge: 14 Pin material: Silver Cavities: 4 Vehicle Uses Element - Heated Seat Lamp - Ambient Lighting Lamp - Courtesy - Footwell Mirror - Sideview Motor - Adjustable Pedal Motor - Steering Column Adjust Solenoid - Brake Shift Park Interlock Speaker - Subwoofer Switch - Gear Shift Select/Neutral Safety Transceiver - Passive Anti-Theft (PATS)
