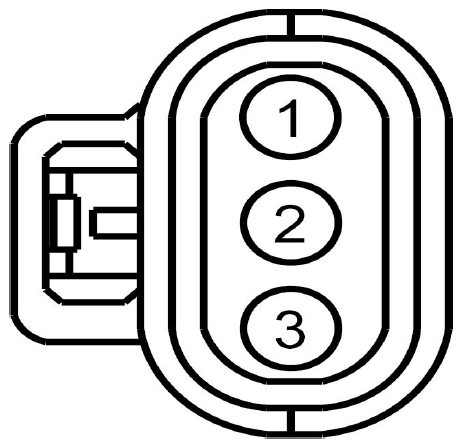

WASTEGATE Vacuum Sensor Connector End View (C1644)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | LE458 (BU-WH) | 20 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF) | |
| 2 | RE454 (YE-GN) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN (SIGRTN) | |
| 3 | VE821 (WH-VT) | 20 | SENSOR - WASTEGATE VACUUM (WVS) |

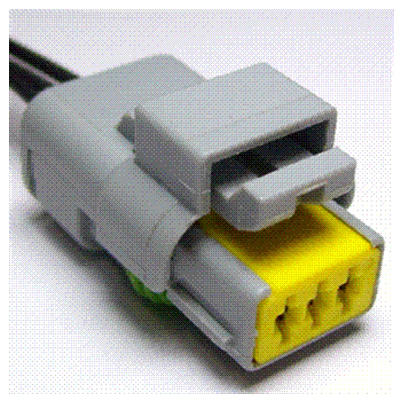

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1317 | Service Part Number: CU2Z-14S411-BCA Gauge: 18 Pin material: Tin (greased) Cavities: 3 Vehicle Uses
|
