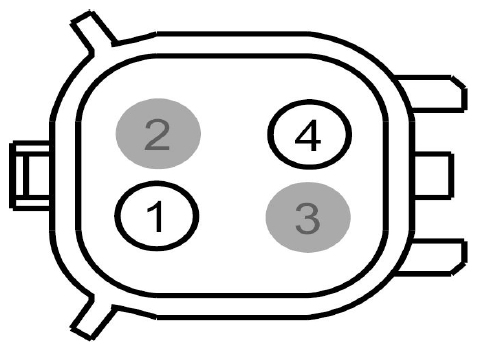

Siren Speaker Connector End View (C1471)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CAP07 (YE) | 16 | SIREN - POLICE + | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | RAP07 (BU-WH) | 16 | SIREN - POLICE - |

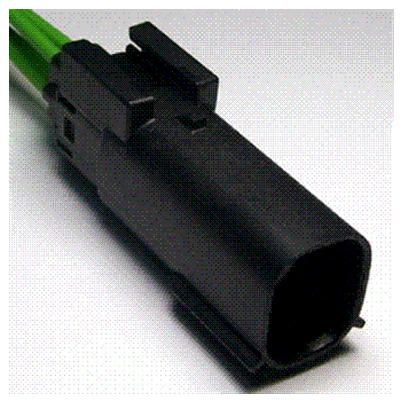

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1288 | Service Part Number: CU2Z-14S411-ZA Gauge: 16 Pin material: Silver Cavities: 4 Vehicle Uses
|
