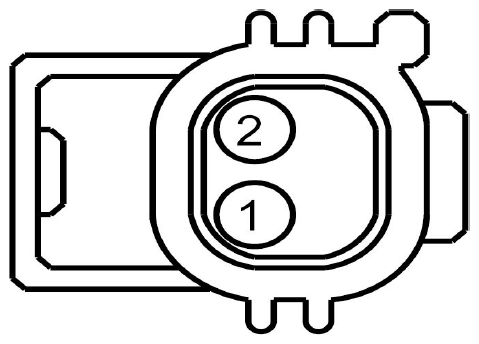

Knock Sensor 2 (KS2) Connector End View (C1615)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | RE324 (BN-GN) | 20 | CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND (KS2-) | |
| 2 | VE802 (BN-BU) | 20 | SENSOR - KNOCK 2ND (KS2+) |
| Available Pigtail Kits | |
|---|---|

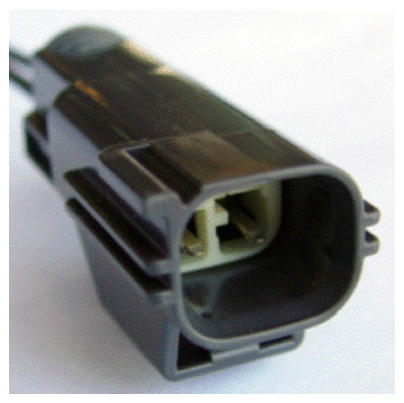

| Pigtail Kit Part Number WPT-987 | Service Part Number: 3U2Z-14S411-CZAB Gauge: 16 Pin material: Tin (greased) Cavities: 2 Vehicle Uses
|

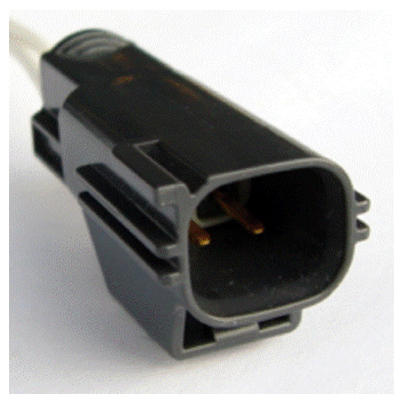

| Pigtail Kit Part Number WPT-418 | Service Part Number: 3U2Z-14S411-JA Gauge: 16 Pin material: Gold Cavities: 2 Vehicle Uses
|

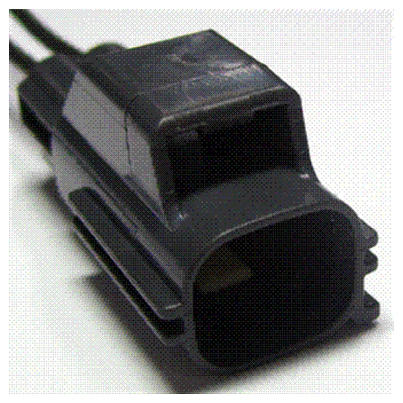

| Pigtail Kit Part Number WPT-707 | Service Part Number: 3U2Z-14S411-CZAA Gauge: 18 Pin material: Tin Cavities: 2 Vehicle Uses
|
