Impact Severity Sensor, RH Front Connector End View (C1466)

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

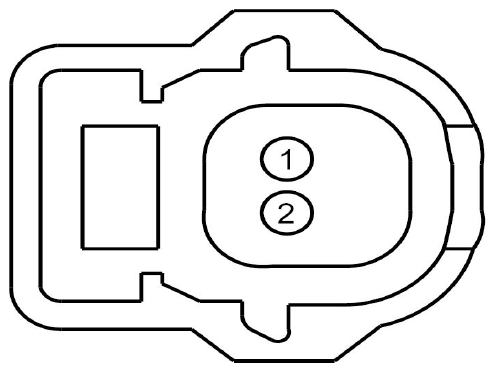

Fig 1: Identifying RH Front Impact Severity Sensor Connector End View (C1466)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VR214 (WH-BU)	18	SENSOR - IMPACT FRONT RH FEED
2	RR130 (GN-BU)	18	CTRL MOD. - SENSOR IMPACT FRONT RH RTN

Available Pigtail Kits

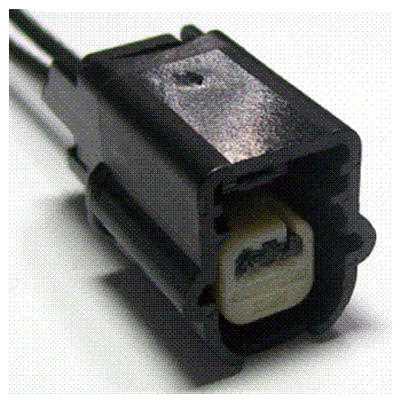

Pigtail Kit Part Number WPT-1314	Service Part Number: 8U2Z-14S411-AAC Gauge: 20 Pin material: Silver Cavities: 2 Vehicle Uses Sensor - Crash (Engine Compartment) Sensor - Seat Track Position Sensor - Side Impact Solenoid - Down Shift Solenoid - Torque Control Coupling Valve - Heated PCV Valve - Heater Core Shut Off Valve - Transmission Fluid Warmer

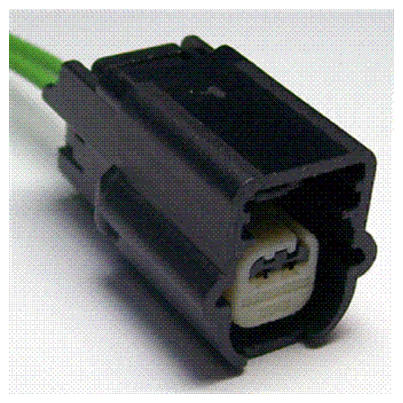

Pigtail Kit Part Number WPT-1216	Service Part Number: 8U2Z-14S411-AAB Gauge: 18 Pin material: Silver Cavities: 2 Vehicle Uses Sensor - Crash (Engine Compartment) Sensor - Seat Track Position Sensor - Side Impact Solenoid - Down Shift Valve - Heated PCV
Pigtail Kit Part Number WPT-1090	Service Part Number: AU2Z-14S411-YA Gauge: 18 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Sensor - Crash (Engine Compartment) Sensor - Side Impact
