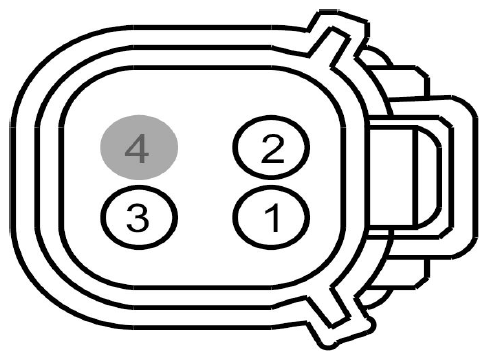

Headlamp Assembly, Left Connector End View (C1021B)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | GD120 (BK-GN) | 20 | GROUND - FENDER FRONT LEFT | |
| 2 | CBP30 (YE-BU) | 20 | FUSE - 30 OR CIRCUIT BREAKER | |
| 3 | CLS21 (BU-GN) | 20 | CTRL MOD. - TURN LAMP LEFT FRONT | |
| 4 | * | * | Not Used |

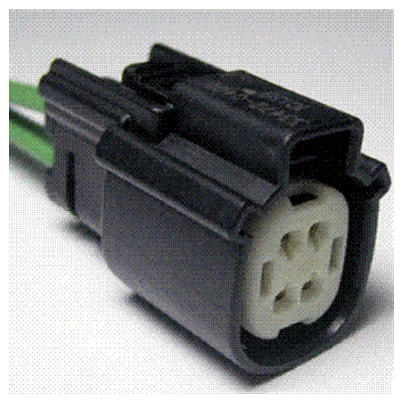

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1171 | Service Part Number: BU2Z-14S411-TA Gauge: 16 Pin material: Silver Cavities: 4 Vehicle Uses
|
