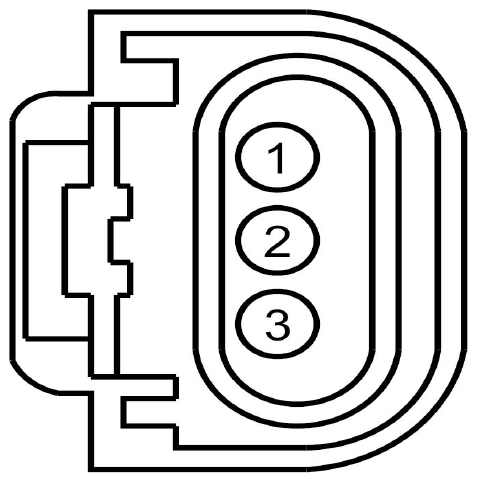

Generator Current Sensor Connector End View (C1645)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | LE424 (YE-GN) | 20 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (VREF) | |
| 2 | RE407 (YE-VT) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN) | |
| 3 | VDC61 (VT-GN) | 20 | SENSOR - BATTERY MONITORING SYSTEM # ALTERNATOR |

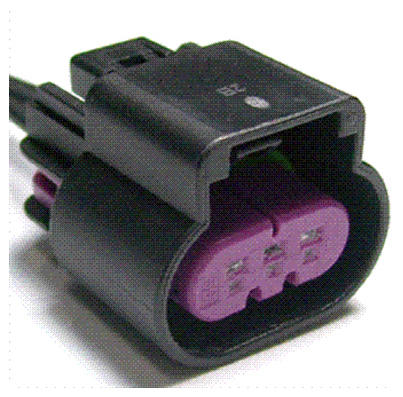

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1144 | Service Part Number: BU2Z-14S411-EA Gauge: 16 Pin material: Tin (greased) Cavities: 3 Vehicle Uses
|
