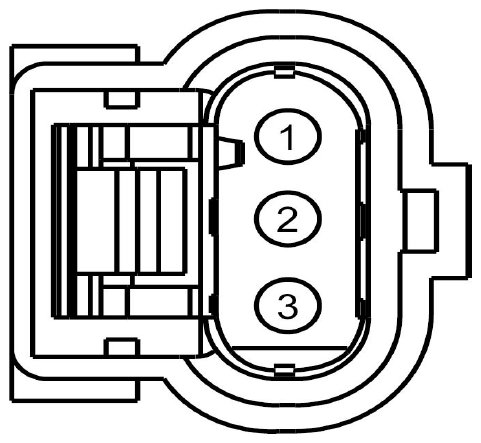

Camshaft Position 21 (CMP21) Sensor Connector End View (C1654)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VE707 (GN-VT) | 18 | SENSOR - CAMSHAFT POSITION BANK 2 IN+EX/IN (CMP21) | |
| 2 | RE406 (GY-VT) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) | |
| 3 | LE111 (VT-GN) | 18 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE (VREF) |

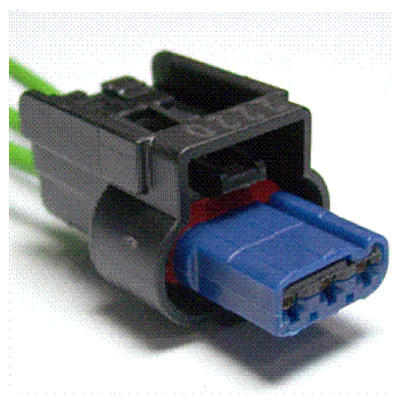

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1202 | Service Part Number: BU2Z-14S411-ARA Gauge: 16 Pin material: Silver Cavities: 3 Vehicle Uses
|
