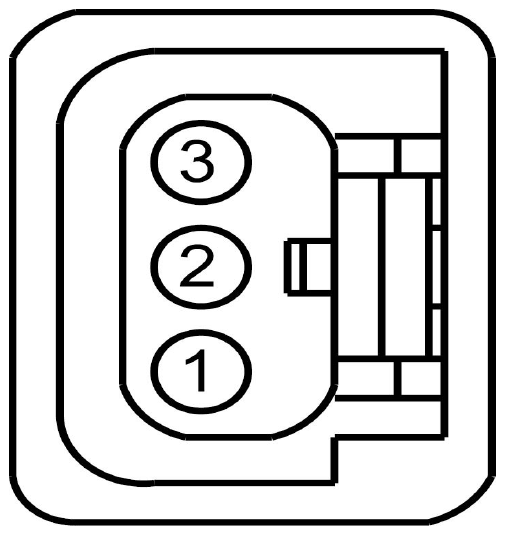

Camshaft Position 12 (CMP12) Sensor Connector End View (C1180)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | LE458 (BU-WH) | 20 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF) | |
| 2 | RE405 (GN-WH) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) | |
| 3 | VE707 (GN-VT) | 20 | SENSOR - CAMSHAFT POSITION BANK 2 IN+EX/IN (CMP12) |
| Available Pigtail Kits | |
|---|---|

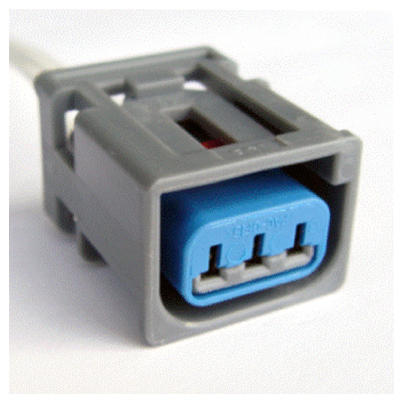

| Pigtail Kit Part Number WPT-393 | Service Part Number: 3U2Z-14S411-KMA Gauge: 18 Pin material: Gold Cavities: 3 Vehicle Uses
|

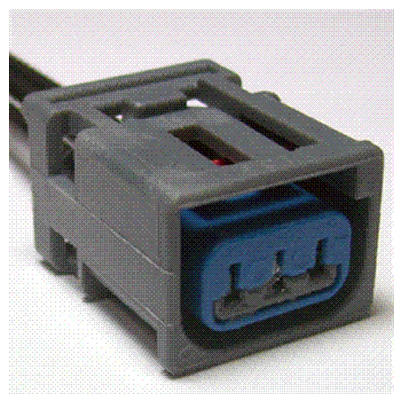

| Pigtail Kit Part Number WPT-1205 | Service Part Number: 3U2Z-14S411-KMB Gauge: 16 Pin material: Tin (greased) Cavities: 3 Vehicle Uses
|
