A/C Pressure Transducer Connector End View (C1260)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

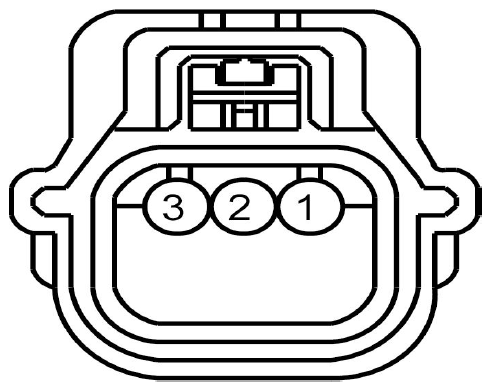

| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | RE407 (YE-VT) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN) | |
| 2 | VH433 (VT-OG) | 18 | TRANSDUCER - A/C PRESSURE (ACPT) | |
| 3 | LE424 (YE-GN) | 18 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (VREF) |
| Available Pigtail Kits | |
|---|---|

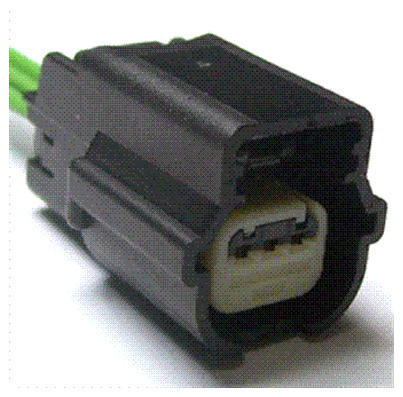

| Pigtail Kit Part Number WPT-926 | Service Part Number: 9U2Z-14S411-CA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses
|

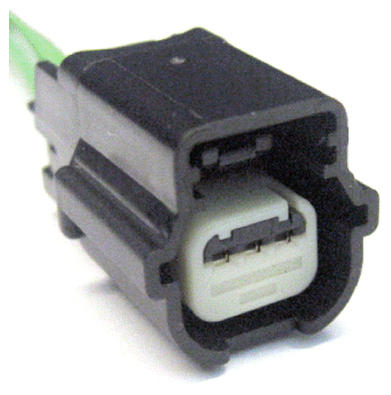

| Pigtail Kit Part Number WPT-1315 | Service Part Number: 9U2Z-14S411-CB Gauge: 20 Pin material: Silver Cavities: 3 Vehicle Uses
|
