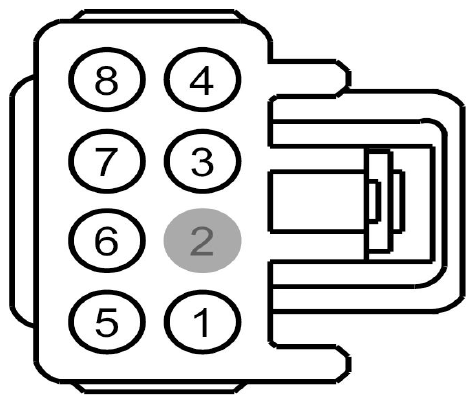

Window Control Switch, Passenger Side Connector End View (C604)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CBP01 (BU) | 12 | FUSE - 48 OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | GD348 (BK-YE) | 12 | GROUND - PILLAR C OR QUARTER PANEL RIGHT | |
| 4 | CPW20 (WH-OG) | 12 | SWITCH - POWER WINDOW FRONT PASSENGER # UP | |
| 5 | CPW74 (YE-GN) | 22 | SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER LOCK OUT BYPASS | |
| 6 | CPW13 (BN-YE) | 22 | SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER UP | |
| 7 | CPW12 (GN-OG) | 22 | SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER DOWN | |
| 8 | CPW19 (VT) | 12 | SWITCH - POWER WINDOW FRONT PASSENGER # DOWN |

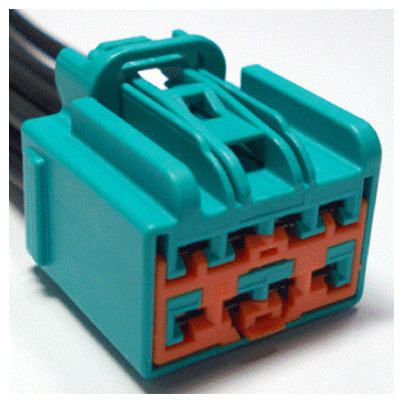

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1031 | Service Part Number: 3U2Z-14S411-PPB Gauge: 10 12 Pin material: Tin & Silver Cavities: 8 Vehicle Uses
|
