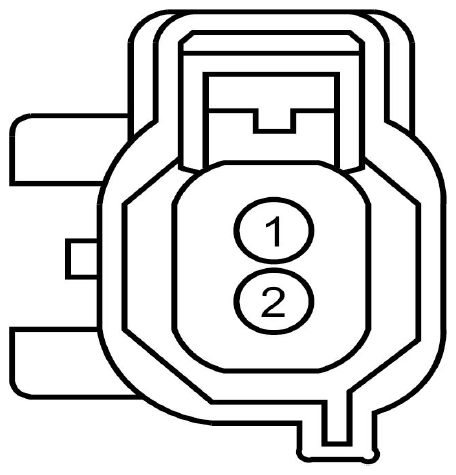

Wheel Speed Sensor, Right Rear Connector End View (C426)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VCA06 (WH-OG) | 20 | SENSOR - WHEEL SPEED RIGHT REAR | |
| 2 | RCA20 (BN) | 20 | CTRL MOD. - SENSOR WHEEL SPEED RIGHT REAR |
| Available Pigtail Kits | |
|---|---|

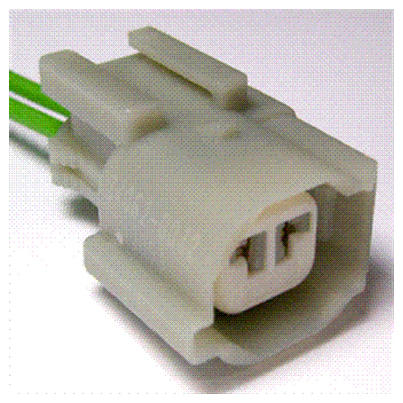

| Pigtail Kit Part Number WPT-1116 | Service Part Number: AU2Z-14S411-BJA Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses
|
