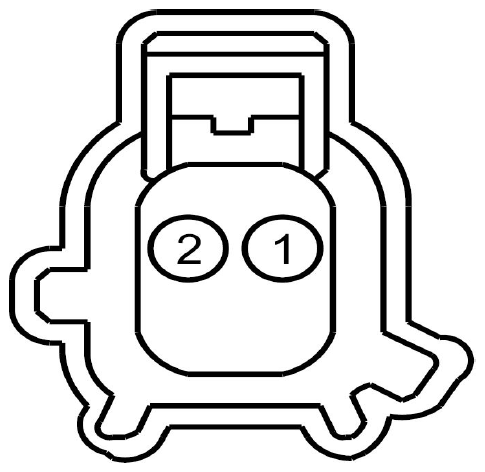

Side Impact Sensor, Passenger Front Door Connector End View (C644)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VR218 (YE-OG) | 18 | SENSOR - SIDE IMPACT FRONT PASSENGER FRONT DOOR FEED | |
| 2 | RR132 (BU-WH) | 18 | CTRL MOD. - SENSOR SIDE IMPACT PASSENGER FRONT DOOR RTN |
| Available Pigtail Kits | |
|---|---|

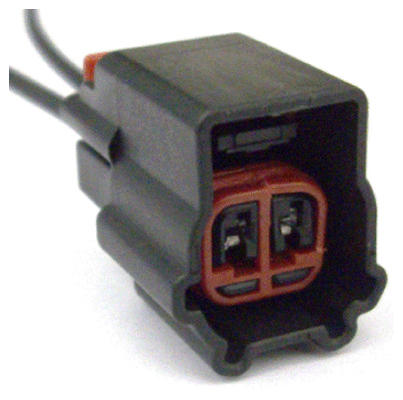

| Pigtail Kit Part Number WPT-837 | Service Part Number: 4U2Z-14S411-RA Gauge: 16 Pin material: Gold Cavities: 2 Vehicle Uses
|

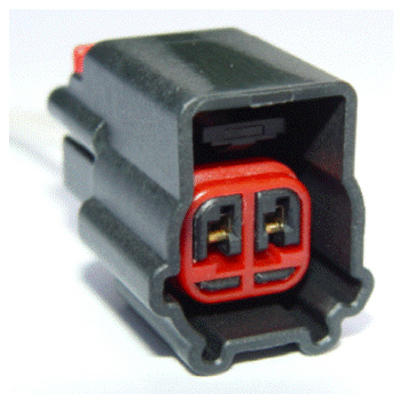

| Pigtail Kit Part Number WPT-948 | Service Part Number: 3U2Z-14S411-EKB Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses
|
