Seat Position Sensor, Driver Connector End View (C356)

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

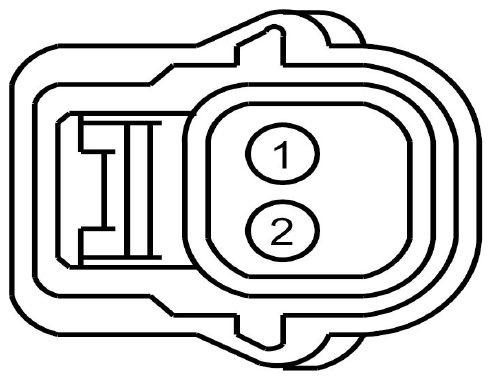

Fig 1: Identifying Driver Seat Position Sensor Connector End View (C356)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RR137 (BU-GY)	20	GROUND - DRIVER SEAT RESTRAINTS SENSORS - CLEAN
2	VR215 (YE-VT)	20	SENSOR - SEAT TRACK POSITION DRIVER

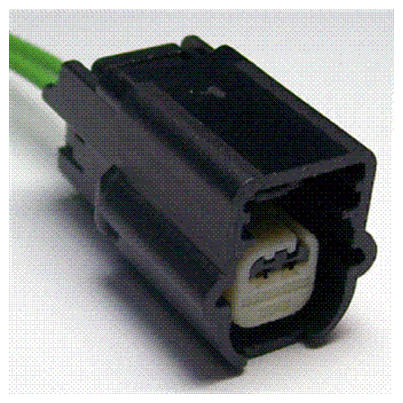

Available Pigtail Kits
Pigtail Kit Part Number WPT-1314	Service Part Number: 8U2Z-14S411-AAC Gauge: 20 Pin material: Silver Cavities: 2 Vehicle Uses Sensor - Crash (Engine Compartment) Sensor - Seat Track Position Sensor - Side Impact Solenoid - Down Shift Solenoid - Torque Control Coupling Valve - Heated PCV Valve - Heater Core Shut Off Valve - Transmission Fluid Warmer
Pigtail Kit Part Number WPT-1216	Service Part Number: 8U2Z-14S411-AAB Gauge: 18 Pin material: Silver Cavities: 2 Vehicle Uses Sensor - Crash (Engine Compartment) Sensor - Seat Track Position Sensor - Side Impact Solenoid - Down Shift Valve - Heated PCV
