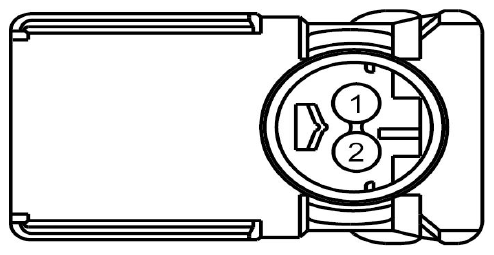

Safety Belt Retractor PRETENSIONER, Driver Connector End View (C323)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CR120 (BU-OG) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE + | |
| 2 | RR120 (BN-GN) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE - |

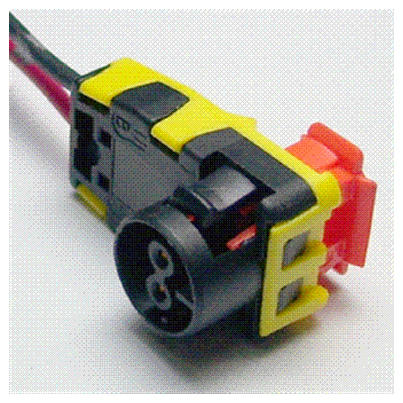

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1225 | Service Part Number: BU2Z-14S411-BHA Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses
|
