Rear Window Defrost Grid Connector End View (C402B)

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

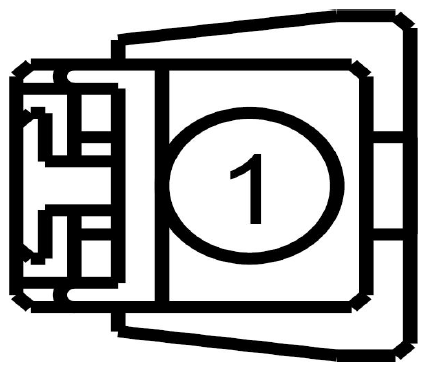

Fig 1: Identifying Rear Window Defrost Grid Connector End View (C402B)
G08748901Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 GD349 (BK-GY) 10 GROUND - PILLAR D LEFT
Available Pigtail Kits

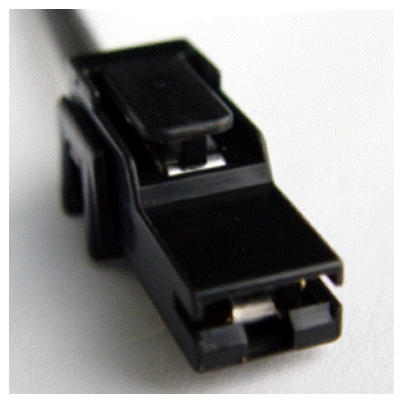

Pigtail Kit Part Number WPT-371
G08748902
 Service Part Number: 3U2Z-14S411-KBA
Gauge: 10
Pin material: Tin
Cavities: 1
Vehicle Uses
  • Cigar Lighter
  • Horn
  • Lamp - CHMSL (Center High Mount Stop Lamp)
  • Module - Isolater Antenna
  • Module - Radio Power Antenna
  • Relay - Starter Motor
  • Switch - Park Brake
  • Terminal - Rear Window Defroster Grid

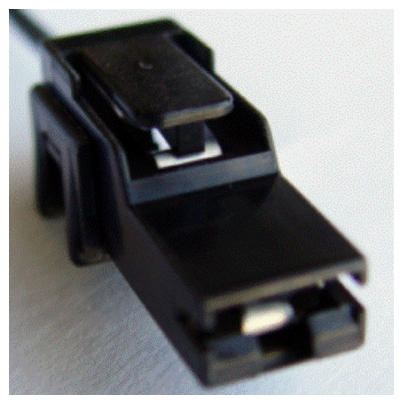

Pigtail Kit Part Number WPT-434
G08748903
 Service Part Number: 3U2Z-14S411-MFA
Gauge: 16 18
Pin material: Tin
Cavities: 1
Vehicle Uses
  • Lamp - Map
