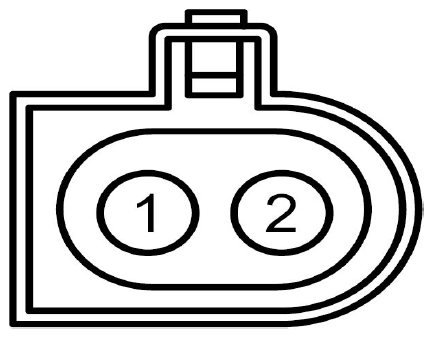

Power Window Motor, Right Front Connector End View (C608)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CPW20 (WH-OG) | 12 | SWITCH - POWER WINDOW FRONT PASSENGER # UP | |
| 2 | CPW19 (VT) | 12 | SWITCH - POWER WINDOW FRONT PASSENGER # DOWN |
| Available Pigtail Kits | |
|---|---|

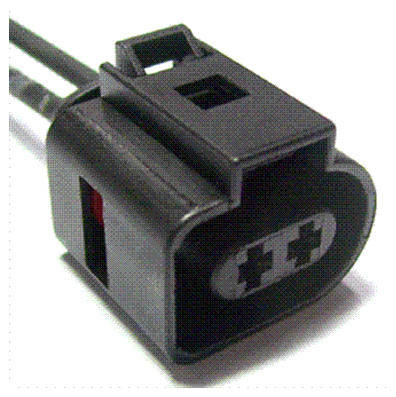

| Pigtail Kit Part Number WPT-1024 | Service Part Number: 3U2Z-14S411-ZLB Gauge: 14 Pin material: Tin Cavities: 2 Vehicle Uses
|
