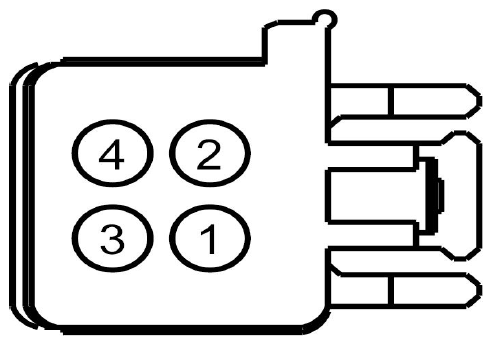

Master Window Control Switch Connector End View (C535B)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | GD233 (BK) | 12 | GROUND - COWL SIDE/PILLAR A LEFT | |
| 2 | CPW10 (YE-VT) | 12 | SWITCH - POWER WINDOW DRIVER # DRIVER DOWN | |
| 3 | CBP01 (BU) | 12 | FUSE - 48 OR CIRCUIT BREAKER | |
| 4 | CPW11 (BU-GY) | 12 | SWITCH - POWER WINDOW DRIVER # DRIVER UP |
| Available Pigtail Kits | |
|---|---|

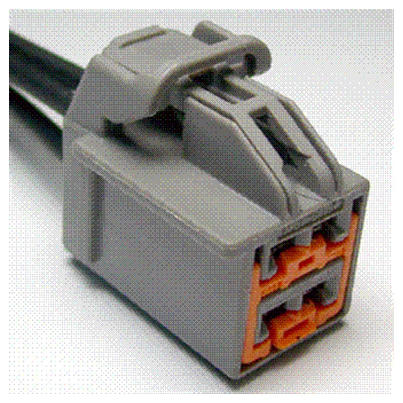

| Pigtail Kit Part Number WPT-1260 | Service Part Number: CU2Z-14S411-JA Gauge: 14 Pin material: Tin Cavities: 4 Vehicle Uses
|
