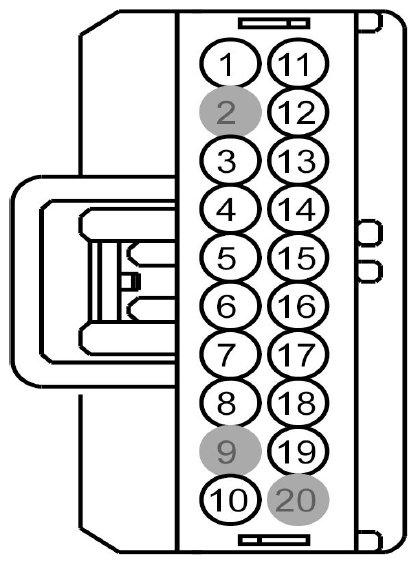

Master Window Control Switch Connector End View (C504)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | GD233 (BK) | 22 | GROUND - COWL SIDE/PILLAR A LEFT | without memory |
| 1 | GD233 (BK) | 18 | GROUND - COWL SIDE/PILLAR A LEFT | memory |
| 2 | * | * | Not Used | |
| 3 | CPW14 (VT-WH) | 22 | SWITCH - POWER WINDOW DRIVER # PASSENGER LOCK OUT (ENABLE) | |
| 4 | CPM28 (BU-BN) | 22 | CTRL MOD. - MIRROR COMMON RETURN | without memory |
| 4 | RPM11 (YE-OG) | 22 | CTRL MOD. - SWITCH MIRROR RETURN | memory |
| 5 | CPM16 (BN-BU) | 22 | SWITCH - POWER MIRROR # LEFT MIRROR RIGHTWARD (IF PLUS) | memory |
| 5 | CPM26 (WH) | 22 | CTRL MOD. - LEFT MIRROR HORIZONTAL | without memory |
| 6 | CPM17 (BU-GN) | 22 | SWITCH - POWER MIRROR # LEFT MIRROR UPWARD (IF PLUS) | memory |
| 6 | CPM29 (GN) | 22 | CTRL MOD. - LEFT MIRROR VERTICAL | without memory |
| 7 | CPM20 (BN-WH) | 22 | SWITCH - POWER MIRROR # RIGHT MIRROR RIGHTWARD (IF PLUS) | memory |
| 7 | CPM31 (YE-GY) | 22 | CTRL MOD. - RIGHT MIRROR HORIZONTAL | without memory |
| 8 | CPM21 (YE-VT) | 22 | SWITCH - POWER MIRROR # RIGHT MIRROR UPWARD (IF PLUS) | memory |
| 8 | CPM34 (WH-BN) | 22 | CTRL MOD. - RIGHT MIRROR VERTICAL | without memory |
| 9 | * | * | Not Used | |
| 10 | CBP32 (GN-VT) | 20 | FUSE - 32 OR CIRCUIT BREAKER | without memory |
| 10 | CBP32 (GN-VT) | 18 | FUSE - 32 OR CIRCUIT BREAKER | memory |
| 11 | CPW12 (GN-OG) | 22 | SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER DOWN | |
| 12 | CPW13 (BN-YE) | 22 | SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER UP | |
| 13 | CPW17 (BN-GN) | 22 | SWITCH - POWER WINDOW DRIVER # REAR RIGHT DOWN | |
| 14 | CPW18 (GY-VT) | 22 | SWITCH - POWER WINDOW DRIVER # REAR RIGHT UP | |
| 15 | CPW16 (BU-OG) | 22 | SWITCH - POWER WINDOW DRIVER # REAR LEFT UP | |
| 16 | CPW15 (YE) | 22 | SWITCH - POWER WINDOW DRIVER # REAR LEFT DOWN | |
| 17 | CPW11 (BU-GY) | 22 | SWITCH - POWER WINDOW DRIVER # DRIVER UP | |
| 18 | CPW10 (YE-VT) | 22 | SWITCH - POWER WINDOW DRIVER # DRIVER DOWN | |
| 19 | CPM22 (GY-BN) | 22 | SWITCH - POWER MIRROR # FOLD/DRIVE TOGGLE | |
| 20 | * | * | Not Used |
