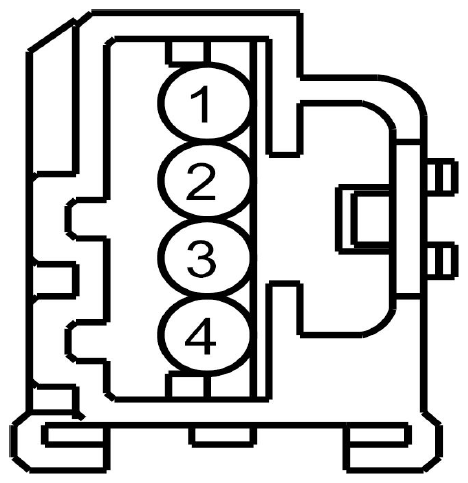

Liftgate Latch Connector End View (C457)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CPL84 (GN-BN) | 18 | RELAY - LIFTGATE/DECKLID RELEASE | |
| 2 | GD349 (BK-GY) | 18 | GROUND - PILLAR D LEFT | |
| 3 | GD349 (BK-GY) | 18 | GROUND - PILLAR D LEFT | |
| 4 | CPL58 (GY-OG) | 20 | SWITCH - LIFTGATE/DECKLID # GLASS AJAR |
| Available Pigtail Kits | |
|---|---|

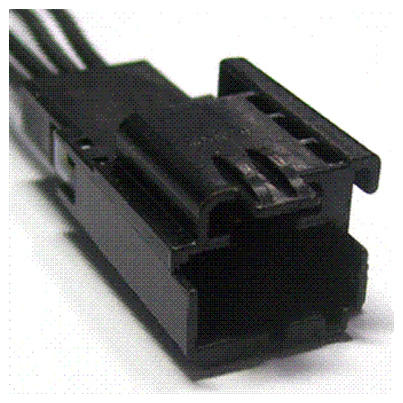

| Pigtail Kit Part Number WPT-1041 | Service Part Number: 9U2Z-14S411-AJA Gauge: 18 Pin material: Tin Cavities: 4 Vehicle Uses
|
