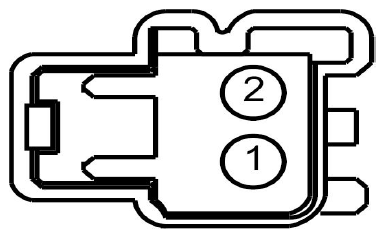

License Plate Lamp, Left Connector End View (C452)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CBP40 (*) | * | FUSE - 40 OR CIRCUIT BREAKER | |
| 2 | GD349 (*) | * | GROUND - PILLAR D LEFT |
| Available Pigtail Kits | |
|---|---|

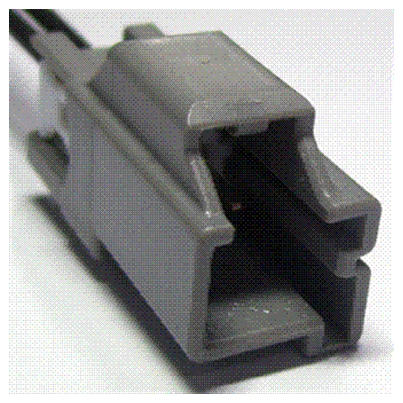

| Pigtail Kit Part Number WPT-1078 | Service Part Number: 3U2Z-14S411-LAB Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses
|

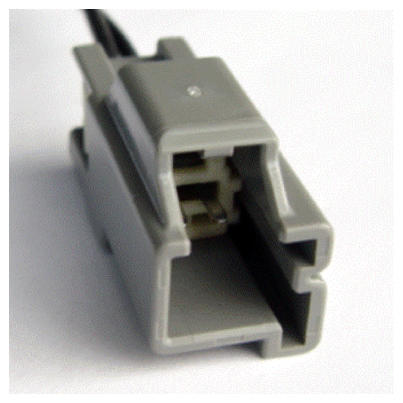

| Pigtail Kit Part Number WPT-422 | Service Part Number: 3U2Z-14S411-LAA Gauge: 16 Pin material: Tin Cavities: 2 Vehicle Uses
|
