Lamp Assembly, Left Rear Connector End View (C414)

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

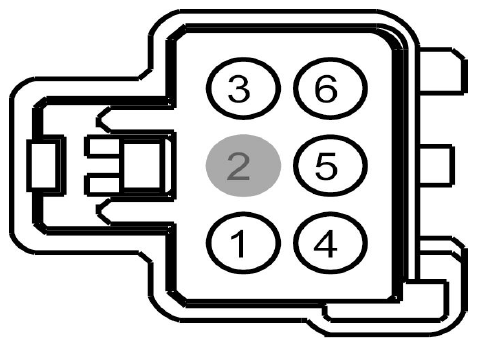

Fig 1: Identifying Left Rear Lamp Assembly Connector End View (C414)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	GD351 (BK-GN)	20	GROUND - PILLAR D RIGHT
2	*	*	Not Used
3	CBP40 (YE-GN)	20	FUSE - 40 OR CIRCUIT BREAKER
4	CLS28 (BU-WH)	20	CTRL MOD. - RELAY REVERSE LAMP CONTROL (RLC)
5	CLS52 (BN)	20	CTRL MOD. - STOP/TURN RIGHT MIDDLE
6	CLS23 (GY-BU)	18	CTRL MOD. - TURN LAMP LEFT REAR

Available Pigtail Kits

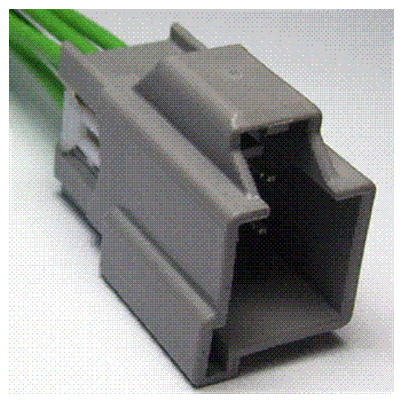

Pigtail Kit Part Number WPT-444	Service Part Number: 3U2Z-14S411-NBA Gauge: 16 Pin material: Tin Cavities: 6 Vehicle Uses Element - Heated Seat Lamp - CHMSL (Center High Mount Stop Lamp) Lamp - Courtesy - Footwell Lamp - Park/Turn/Stop Lamp - Park/Turn/Stop/Reverse - Inline (Male) Motor - Adjustable Pedal Switch - Gear Shift Select/Neutral Safety Switch - Multifunction

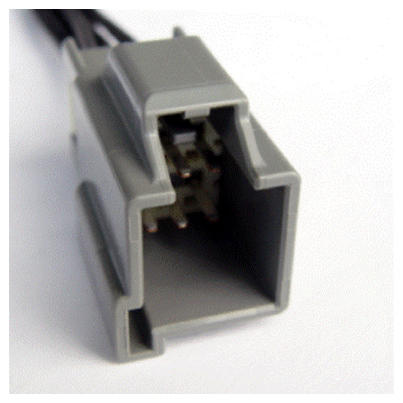

Pigtail Kit Part Number WPT-1299	Service Part Number: 3U2Z-14S411-NBB Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Connector - Inline Element - Heated Seat Inverter - DC to AC Lamp - CHMSL (Center High Mount Stop Lamp) Lamp - Courtesy - Footwell Lamp - License Lamp - Park/Turn/Stop Lamp - Top Finish Panel Motor - Adjustable Pedal Switch - Gear Shift Select/Neutral Safety Switch - Multifunction
