Interior Lamp, Second Row Connector End View (C901)

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

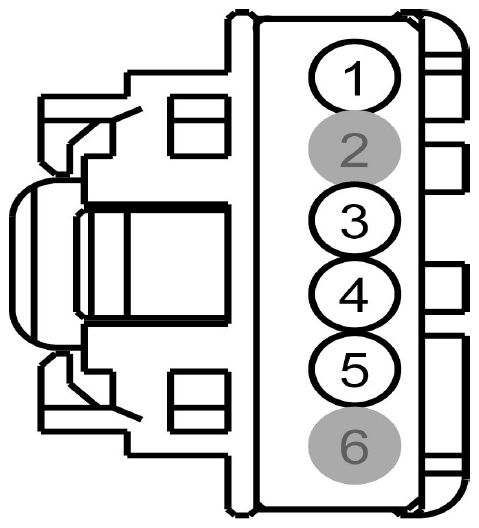

Fig 1: Identifying Second Row Interior Lamp Connector End View (C901)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	CLN09 (YE-GN)	20	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)
2	*	*	Not Used
3	CLN09 (YE-GN)	20	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)
4	VLN33 (GY-VT)	20	CTRL MOD. - INTERIOR/COURTESY LAMP DIMMING (THEATRE)
5	GD233 (BK)	20	GROUND - COWL SIDE/PILLAR A LEFT
6	*	*	Not Used

Available Pigtail Kits
Pigtail Kit Part Number WPT-1249	Service Part Number: 3U2Z-14S411-BYAC Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Lamp - Dome Lamp - Storage Compartment - Cargo Motor - Heater A/C Mode Door Motor - Heater/AC Blend Door Motor - Heater/AC Inlet Door Switch - Hazard Warning Switch - Heated Seat Switch - Heater A/C Blower (Rear) Switch - Speed Control
Pigtail Kit Part Number WPT-956	Service Part Number: 3U2Z-14S411-BYAB Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Motor - Heater A/C Mode Door Motor - Heater/AC Blend Door Motor - Heater/AC Inlet Door Switch - Hazard Warning Switch - Heated Seat - LH - Front Switch - Heated Seat - LH - Rear Switch - Heated Seat - RH - Front Switch - Heated Seat - RH - Rear Switch - Heater A/C Blower (Rear)
