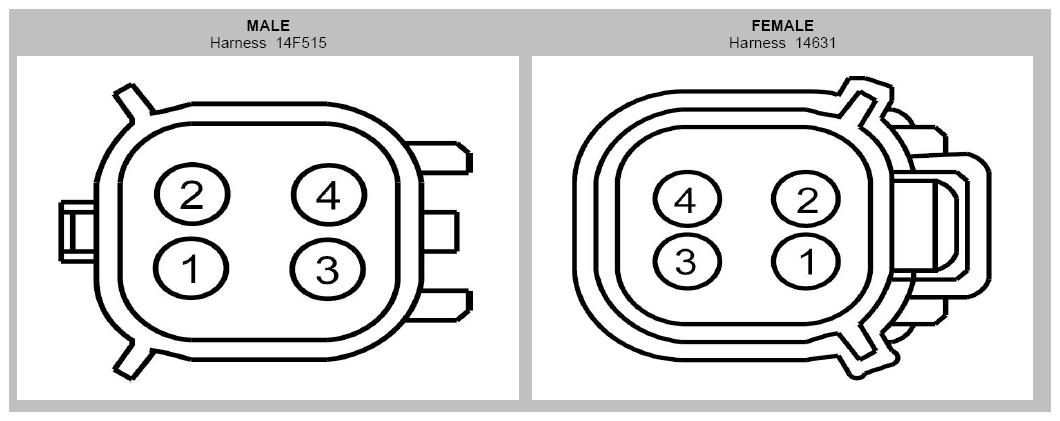

Inline Connector End View (C510)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | RPK01 (WH-GN) | 22 | |
| 2 | VPK01 (BN-YE) | 22 | |
| 3 | VPK39 (GN-VT) | 22 | |
| 4 | RPK39 (VT-OG) | 22 |

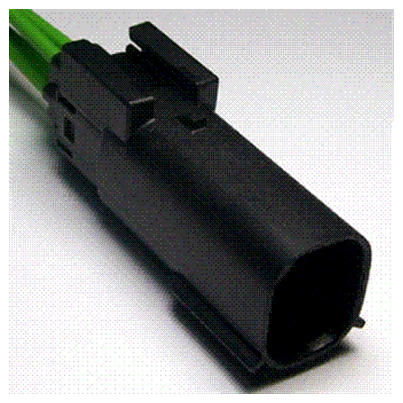

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1288 | Service Part Number: CU2Z-14S411-ZA Gauge: 16 Pin material: Silver Cavities: 4 Vehicle Uses:
|
