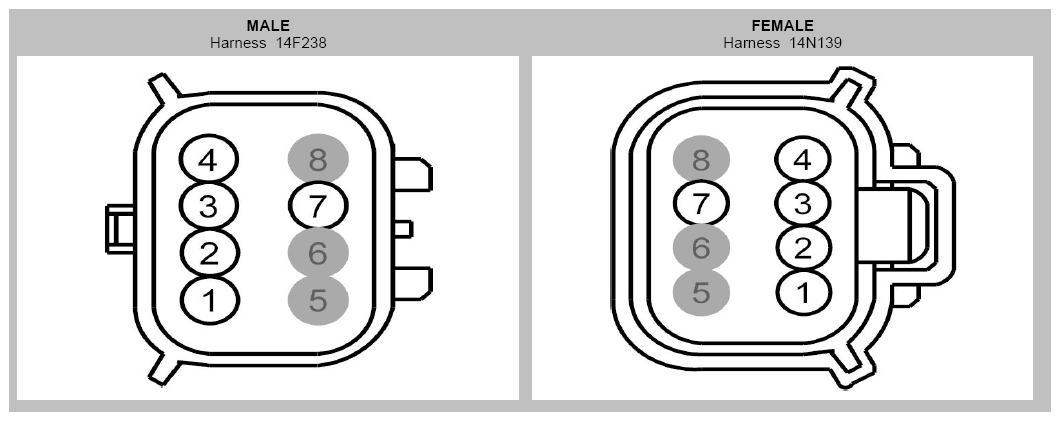

Inline Connector End View (C465)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
CBP34 (VT-BN) |
20 |
|
| 2 |
VDB07 (VT-OG) |
20 |
14F238 |
| 2 |
VDB07 (VT-OG) |
22 |
14N139 |
| 3 |
VDB06 (GY-OG) |
20 |
14F238 |
| 3 |
VDB06 (GY-OG) |
22 |
14N139 |
| 4 |
GD351 (BK-GN) |
20 |
|
| 5 |
* |
* |
|
| 6 |
* |
* |
|
| 7 |
CRB04 (YE-GN) |
20 |
14F238 |
| 7 |
CRB04 (YE-GN) |
22 |
14N139 |
| 8 |
* |
* |
|
