Inline Connector End View (C408)

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

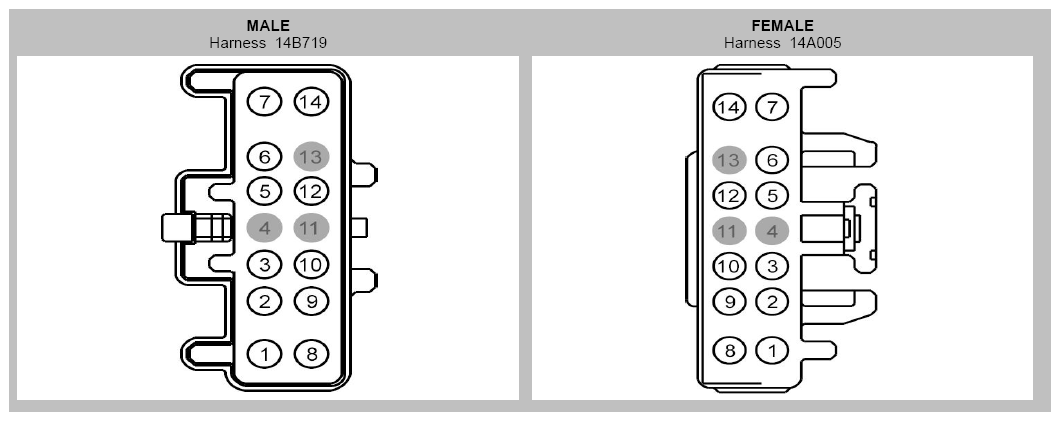

Fig 1: Identifying Inline Connector End View (C408)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Qualifier
1	CBB18 (GY-OG)	12	14B719 - early production
1	CBB22 (GN-OG)	12	14B719 - late production
1	CPS53 (VT-BN)	12	14A005
2	CPS48 (BU)	20	14B719 - early production
2	CPSA1 (WH-GN)	20	14A005
2	CPSA1 (WH-GN)	20	14B719 - late production
3	CPS49 (BN-GN)	20	14B719 - early production
3	CPSB2 (GY)	20	14A005
3	CPSB2 (GY)	20	14B719 - late production
4	*	*	14A005
4	VDB06 (GY-OG)	20	14B719 - early production
4	VDB07 (VT-OG)	20	14B719 - late production
5	CPS50 (BU-BN)	20	14B719 - early production
5	CPSB1 (GN)	20	14A005
5	CPSB1 (GN)	20	14B719 - late production
6	GD149 (BK-GY)	20	14B719 - early production
6	RPSB2 (BN)	20	14A005
6	RPSB2 (BN)	20	14B719 - late production
7	GD149 (BK-GY)	14	14B719 - early production
7	GD349 (BK-GY)	12	14A005
7	GD349 (BK-GY)	12	14B719 - late production
8	CPS02 (GY-YE)	14	14B719 - early production
8	CPSA3 (GN-OG)	12	14A005
8	CPSA3 (GN-OG)	14	14B719 - late production
9	LPS13 (BU-GY)	20	14B719 - early production
9	LPSA4 (VT-WH)	20	14A005
9	LPSA4 (VT-WH)	20	14B719 - late production
10	RPS13 (GN-OG)	20	14B719 - early production
10	RPSA4 (YE-VT)	20	14A005
10	RPSA4 (YE-VT)	20	14B719 - late production
11	*	*	14A005
11	VDB06 (GY-OG)	20	14B719 - late production
11	VDB07 (VT-OG)	20	14B719 - early production
12	CPS48 (BU)	20	14A005
12	CPS48 (BU)	20	14B719 - late production
12	CPS58 (WH-BN)	20	14B719 - early production
13	*	*
14	CPS03 (VT-GY)	14	14B719 - early production
14	CPSA2 (BU-GN)	12	14A005
14	CPSA2 (BU-GN)	14	14B719 - late production
