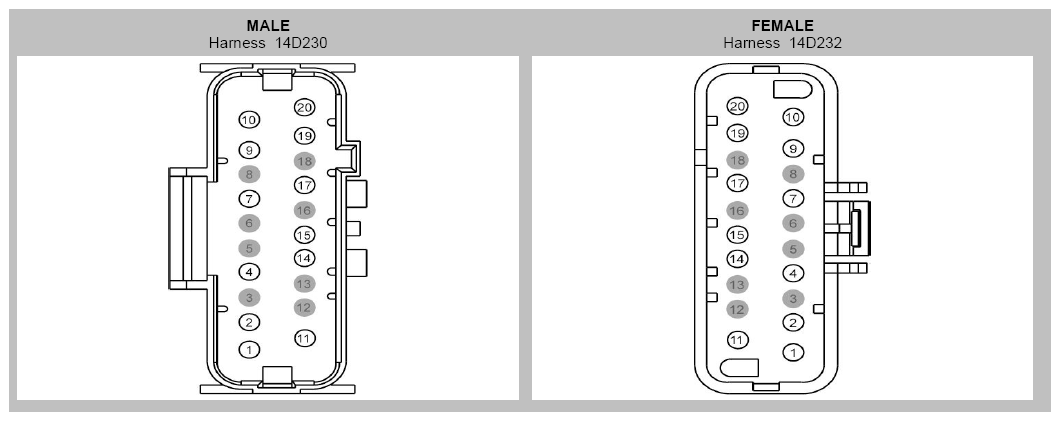

Inline Connector End View (C340)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | CPS08 (VT-OG) | 16 | 14D232 |
| 1 | CPS40 (VT-GY) | 16 | 14D230 |
| 2 | CPS18 (BN-GN) | 18 | 14D232 |
| 2 | CPS20 (VT) | 20 | 14D230 |
| 3 | * | * | |
| 4 | CHS01 (GY-VT) | 16 | 14D232 |
| 4 | CHS01 (GY-VT) | 16 | 14D230 - with heated seats |
| 4 | CHS06 (BU-BN) | 14 | 14D230 - with climate controlled seats |
| 5 | * | * | |
| 6 | * | * | 14D230 |
| 6 | VPS12 (GY-OG) | 20 | 14D232 |
| 7 | RHS15 (GY-BN) | 20 | 14D232 |
| 7 | RHS20 (GN-BU) | 18 | 14D230 |
| 8 | * | * | |
| 9 | RHS03 (GY-OG) | 16 | 14D232 |
| 9 | RHS08 (VT-WH) | 16 | 14D230 |
| 10 | RHS01 (WH-VT) | 16 | 14D232 |
| 10 | RHS06 (WH) | 14 | 14D230 |
| 11 | CHS03 (GN-BN) | 16 | 14D232 |
| 11 | CHS08 (BN-YE) | 16 | 14D230 |
| 12 | * | * | |
| 13 | * | * | 14D230 |
| 13 | RPS13 (GN-OG) | 20 | 14D232 |
| 14 | VHS35 (VT-OG) | 20 | 14D232 |
| 14 | VHS36 (YE-BU) | 18 | 14D230 |
| 15 | VHS16 (BU-GN) | 20 | 14D232 |
| 15 | VHS21 (BU-WH) | 18 | 14D230 |
| 16 | * | * | |
| 17 | GD903 (BK-WH) | 14 | 14D230 |
| 17 | GD904 (BK-BU) | 16 | 14D232 |
| 18 | * | * | 14D230 |
| 19 | CPS07 (GY-BN) | 16 | 14D232 |
| 19 | CPS39 (GY-YE) | 16 | 14D230 |
| 20 | CPS19 (GY-VT) | 18 | 14D232 |
| 20 | CPS21 (WH-OG) | 20 | 14D230 |
