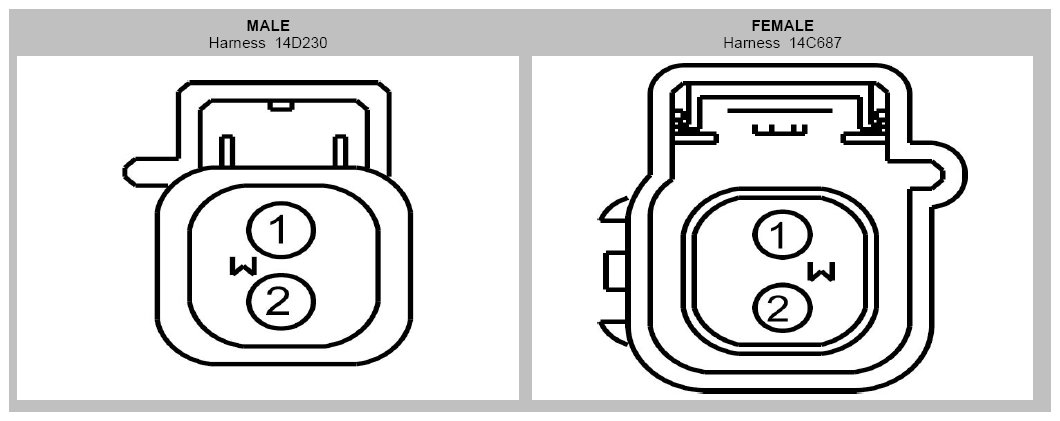

Inline Connector End View (C339)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | CR106 (VT-GY) | 20 | 14D230 |
| 1 | RR106 (YE-OG) | 20 | 14C687 |
| 2 | CR106 (VT-GY) | 20 | 14C687 |
| 2 | RR106 (YE-OG) | 20 | 14D230 |
| Available Pigtail Kits | |
|---|---|

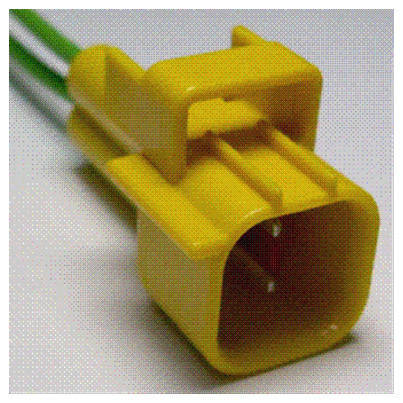

| Pigtail Kit Part Number WPT-1244 | Service Part Number: AU2Z-14S411-BMA Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses:
|
