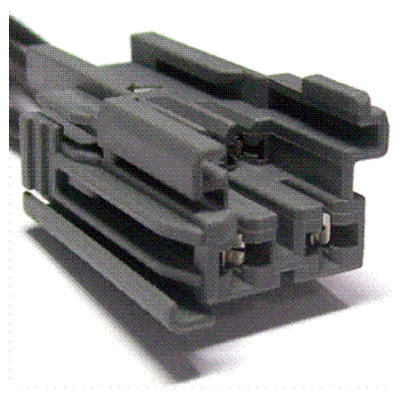

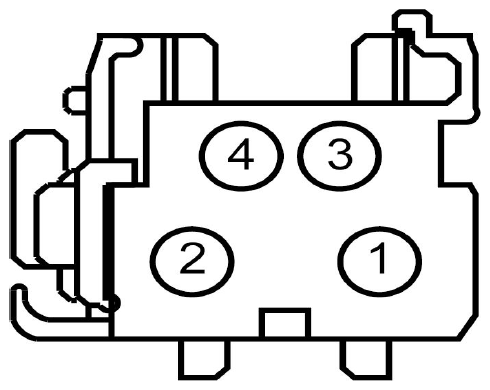

Driver Seat Horizontal Motor Connector End View (C362)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CPS01 (GN-BU) | 16 | CTRL MOD. - DRIVER SEAT SLIDE FORWARD | with memory |
| 1 | CPS23 (GN-VT) | 16 | SWITCH - SEAT ADJUST. DRIVER FORWARD | without memory |
| 2 | CPS28 (GN) | 16 | SWITCH - SEAT ADJUST. DRIVER REARWARD | without memory |
| 2 | CPS06 (GN-WH) | 16 | CTRL MOD. - DRIVER SEAT SLIDE REARWARD | with memory |
| 3 | RPS13 (GN-OG) | 18 | CTRL MOD. - DRIVER SEAT SENSORS CUSHION | with memory |
| 4 | VPS09 (BN-BU) | 18 | SENSOR - DRIVER SEAT SLIDE FORWARD/REARWARD | with memory |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1072 | Service Part Number: AU2Z-14S411-RA Gauge: 14 18 Pin material: Tin Cavities: 4 Vehicle Uses
|
