Door Latch, Right Front Connector End View (C609)

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

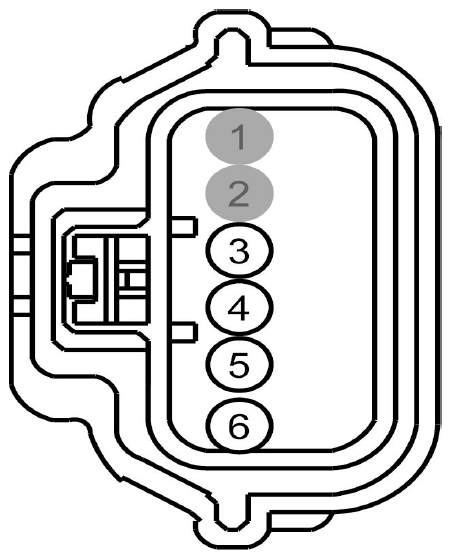

Fig 1: Identifying Right Front Door Latch Removing Connector End View (C609)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	*	*	Not Used
2	*	*	Not Used
3	CPL52 (VT-GY)	18	CTRL MOD. - DOOR LOCK - PASSENGER DOORS UNLOCK (ALL EXCLUDING DRIVER)
4	CPL11 (GY-BN)	18	CTRL MOD. - DOOR LOCK # ALL LOCK
5	CPL31 (WH)	18	SWITCH - LATCH PASSENGER # AJAR
6	GD348 (BK-YE)	18	GROUND - PILLAR C OR QUARTER PANEL RIGHT

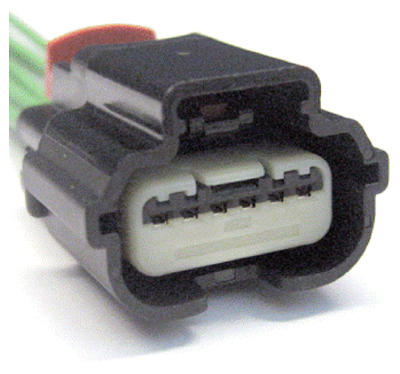

Available Pigtail Kits
Pigtail Kit Part Number WPT-1338	Service Part Number: 9U2Z-14S411-BB Gauge: 20 Pin material: Silver Cavities: 6 Vehicle Uses Actuator - Door Lock - LH - Front Actuator - Door Lock - LH - Rear Actuator - Door Lock - RH - Front Actuator - Door Lock - RH - Rear Module - Occupant Classification Sensor - Acceleration Pedal Position Sensor - Transmission Range Switch - Door Ajar/Interior Lamp
Pigtail Kit Part Number WPT-929	Service Part Number: 9U2Z-14S411-BA Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Actuator - Door Lock - LH - Front Actuator - Door Lock - LH - Rear Actuator - Door Lock - RH - Front Actuator - Door Lock - RH - Rear Sensor - Acceleration Pedal Position Switch - Door Ajar/Interior Lamp
