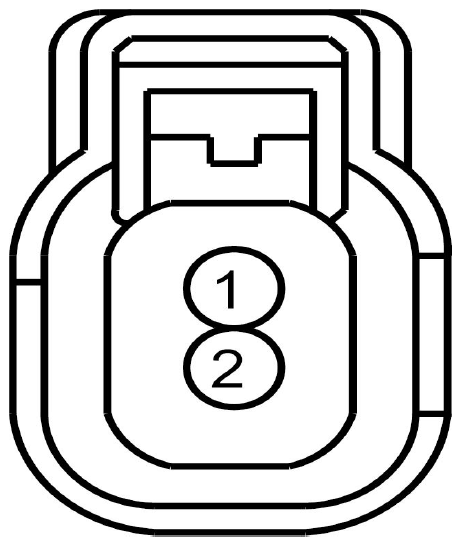

Washer Fluid Level Switch Connector End View (C138)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CMC20 (VT) | 20 | SWITCH - LOW LEVEL WASHER FLUID | |
| 2 | GD123 (BK-GY) | 20 | GROUND - FENDER FRONT RIGHT |

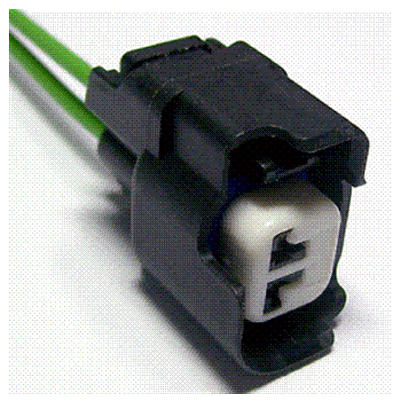

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1217 | Service Part Number: AU2Z-14S411-AXA Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses
|
