Starter Motor Connector End View (C197B)

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

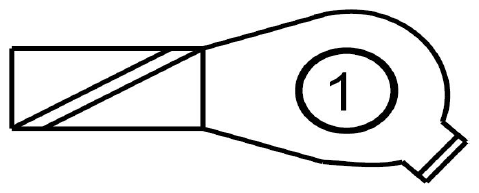

Fig 1: Identifying Starter Motor Connector End View (C197B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CDC25 (BN-GN)	12	RELAY - STARTER
