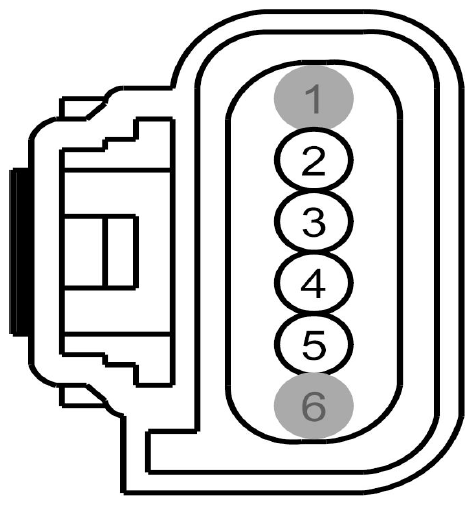

Mass Air Flow/Intake Air Temperature (MAF/IAT) Sensor Connector End View (C128)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | * | * | Not Used | |
| 2 | VE740 (VT-GY) | 20 | SENSOR - INTAKE AIR TEMPERATURE (IAT) | |
| 3 | CBK02 (GN) | 18 | FUSE - 67 OR CIRCUIT BREAKER (VPWR) | |
| 4 | RE320 (BU) | 20 | CTRL MOD. - POWERTRAIN # MASS AIR FLOW SEN. LH BANK OR 1ST BANK (MAFRTN) | |
| 5 | VE807 (YE-VT) | 20 | SENSOR - MASS AIR FLOW LH BANK OR 1ST BANK OR UNIQUE (MAF) | |
| 6 | * | * | Not Used |
| Available Pigtail Kits | |
|---|---|

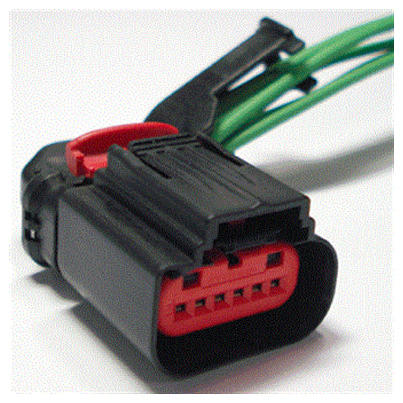

| Pigtail Kit Part Number WPT-795 | Service Part Number: 3U2Z-14S411-FJAA Gauge: 18 Pin material: Gold Cavities: 6 Vehicle Uses
|

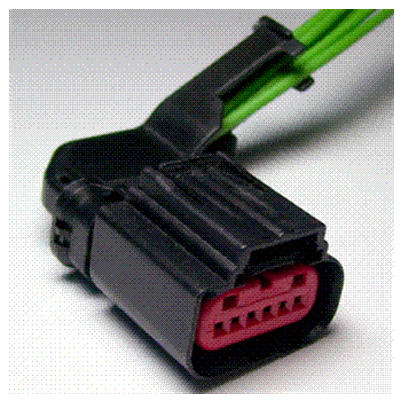

| Pigtail Kit Part Number WPT-1023 | Service Part Number: 3U2Z-14S411-FJAB Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses
|

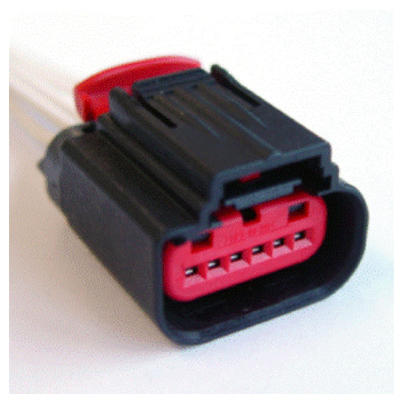

| Pigtail Kit Part Number WPT-1241 | Service Part Number: 3U2Z-14S411-FJAC Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses
|
