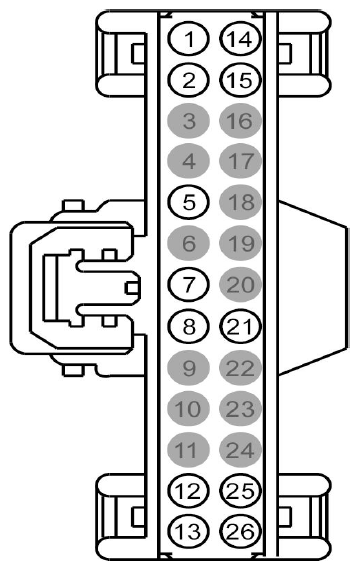

Instrument Panel Cluster (IPC) Connector End View (C220)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | RMC33 (WH-VT) | 22 | CTRL MOD. - SENSOR FUEL LEVEL 2 | |
| 2 | RMC32 (GN-BU) | 22 | CTRL MOD. - SENSOR FUEL LEVEL | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | GD214 (BK-BU) | 18 | GROUND - INSTRUMENT PANEL STRUCTURE | |
| 6 | * | * | Not Used | |
| 7 | CET52 (GN) | 22 | SWITCH - TRANSMISSION PARK DETECT | |
| 8 | CMC20 (VT) | 26 | SWITCH - LOW LEVEL WASHER FLUID | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | VDB04 (WH-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 13 | VDB05 (WH) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 14 | VMC23 (GN-OG) | 22 | SENSOR - FUEL LEVEL 2 (FLI) | |
| 15 | VMC11 (YE-VT) | 22 | SENSOR - FUEL LEVEL (FLI) | |
| 16 | * | * | Not Used | |
| 17 | * | * | Not Used | |
| 18 | * | * | Not Used | |
| 19 | * | * | Not Used | |
| 20 | * | * | Not Used | |
| 21 | SBP11 (BU-RD) | 20 | FUSE - 11 OR CIRCUIT BREAKER | |
| 22 | * | * | Not Used | |
| 23 | * | * | Not Used | |
| 24 | * | * | Not Used | |
| 25 | VDB13 (BU-GY) | 22 | INSTRUMENT CLUSTER # CAN BUS MULTIMEDIA HIGH | |
| 26 | VDB14 (VT-GY) | 22 | INSTRUMENT CLUSTER # CAN BUS MULTIMEDIA LOW |
