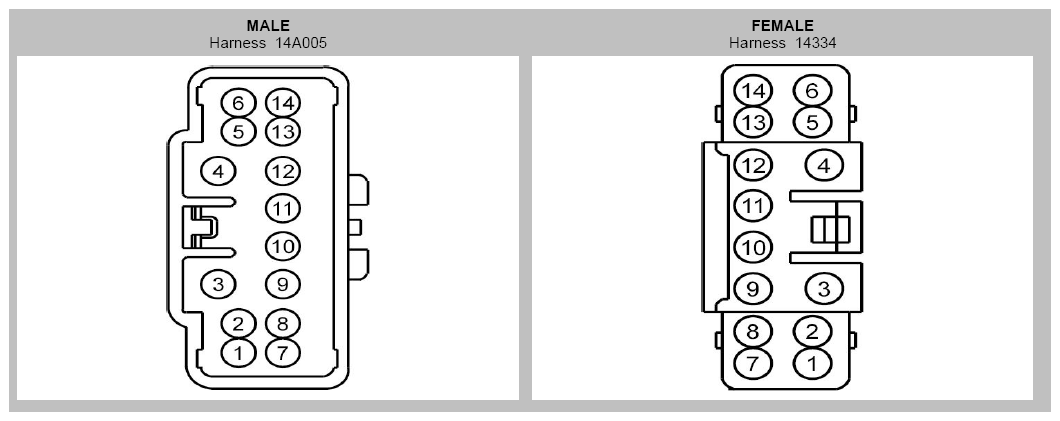

Inline Connector End View (C317)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | CBP38 (GY-BU) | 20 | |
| 2 | CBB45 (YE) | 22 | with rain sensor |
| 2 | DMP19 (*) | 18 | 14334 - with rear view camera |
| 2 | DMP19 (*) | 18 | 14A005 - with rear view camera - late production |
| 2 | DMP19 (*) | 20 | 14A005 - with rear view camera - early production |
| 3 | SBB08 (VT-RD) | 16 | |
| 4 | CBP34 (VT-BN) | 20 | 14334 - with rain sensor |
| 4 | CBP34 (VT-BN) | 20 | 14A005 - with rain sensor |
| 4 | VDN01 (BU-WH) | 22 | with rear view camera |
| 5 | VMM23 (BN-VT) | 20 | |
| 6 | DMM23 (*) | 18 | 14334 |
| 6 | DMM23 (*) | 18 | 14A005 - late production |
| 6 | DMM23 (*) | 20 | 14A005 - early production |
| 7 | RMP19 (BN-VT) | 22 | with rear view camera |
| 7 | VDB04 (WH-BU) | 22 | 14334 - with rain sensor |
| 7 | VDB04 (WH-BU) | 22 | 14A005 - with rain sensor |
| 8 | VDB05 (WH) | 22 | 14334 - with rain sensor |
| 8 | VDB05 (WH) | 22 | 14A005 - with rain sensor |
| 8 | VMP19 (WH-GN) | 22 | with rear view camera |
| 9 | VLN33 (GY-VT) | 18 | 14A005 |
| 9 | VLN33 (GY-VT) | 20 | 14334 |
| 10 | CLN09 (YE-GN) | 20 | |
| 11 | GD233 (BK) | 16 | |
| 12 | GD233 (BK) | 16 | |
| 13 | VDN05 (YE-GY) | 22 | |
| 14 | CLS28 (BU-WH) | 18 |
