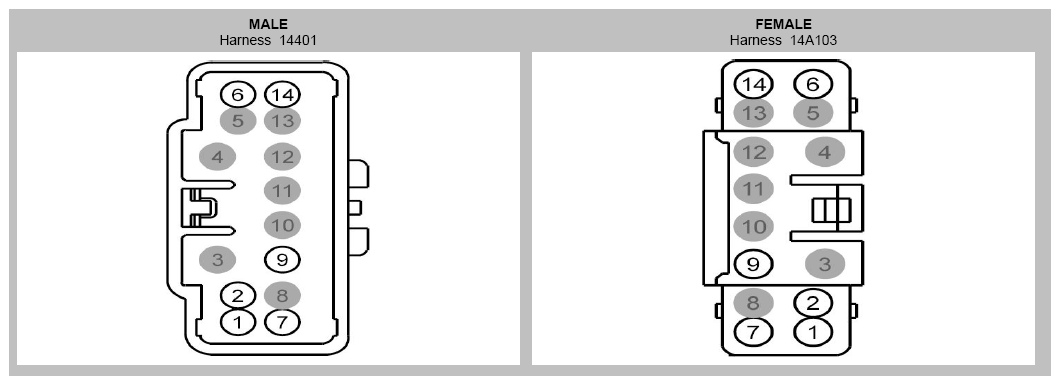

Inline Connector End View (C299)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
SAP05 (VT) |
18 |
|
| 2 |
CAP12 (VT-OG) |
18 |
|
| 3 |
* |
* |
14A103 |
| 3 |
CAP22 (BN-YE) |
16 |
14401 |
| 4 |
* |
* |
14A103 |
| 4 |
RAP08 (GN-BU) |
16 |
14401 |
| 5 |
* |
* |
|
| 6 |
CAP06 (GY-OG) |
22 |
|
| 7 |
VLN04 (VT-GY) |
18 |
|
| 8 |
* |
* |
14A103 |
| 8 |
CBP31 (BU-OG) |
22 |
14401 |
| 9 |
VAP08 (BN) |
16 |
|
| 10 |
* |
* |
|
| 11 |
* |
* |
|
| 12 |
* |
* |
|
| 13 |
* |
* |
|
| 14 |
CAP14 (GY-BN) |
22 |
|
