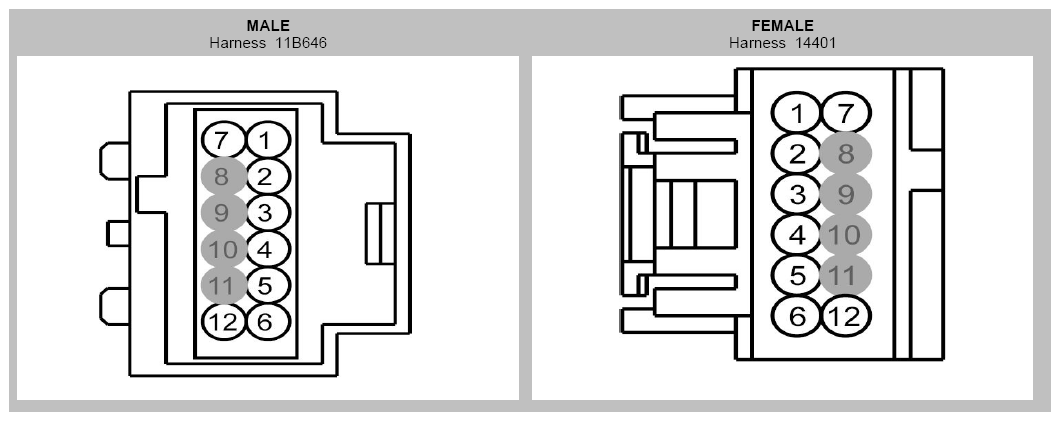

Inline Connector End View (C291)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | CBP35 (YE-GY) | 20 | |
| 2 | VLF14 (BU) | 26 | |
| 3 | VH417 (YE) | 26 | |
| 4 | VH416 (VT) | 26 | |
| 5 | VDB04 (BU) | 26 | |
| 6 | VDB05 (WH) | 26 | |
| 7 | SBP11 (BU-RD) | 20 | |
| 8 | * | * | |
| 9 | * | * | |
| 10 | * | * | |
| 11 | * | * | |
| 12 | GD215 (BK-GY) | 18 | 14401 |
| 12 | GD215 (BK-GY) | 18 | 11B646 - with adaptive cruise |
| 12 | GD215 (BK-GY) | 22 | 11B646 - w/o adaptive cruise |

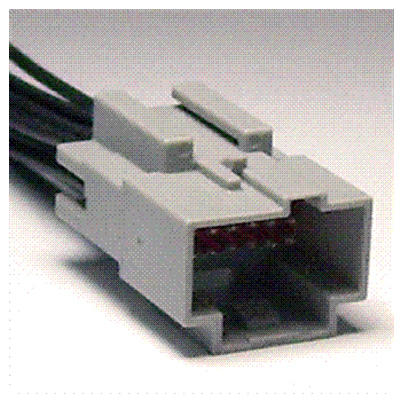

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1185 | Service Part Number: BU2Z-14S411-AJA Gauge: 18 Pin material: Tin (greased) Cavities: 12 Vehicle Uses:
|
