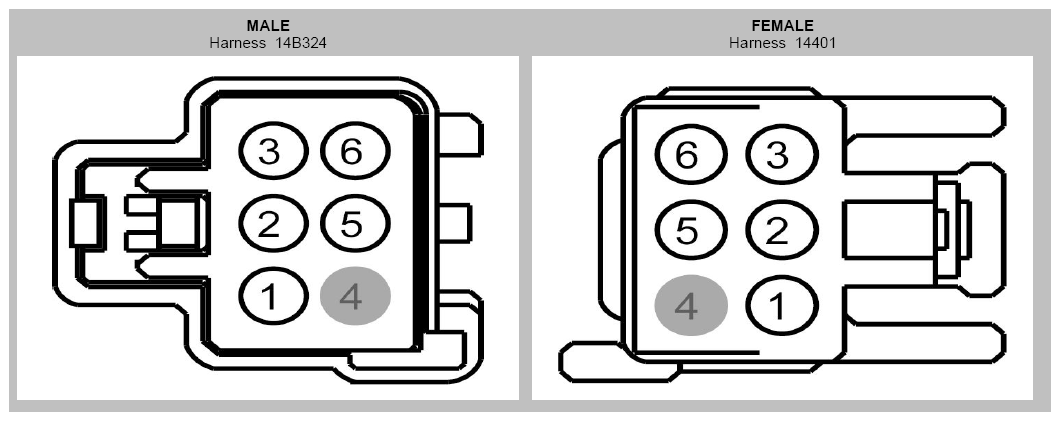

Inline Connector End View (C248)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | LH111 (BN-WH) | 20 | 14B324 |
| 1 | LH111 (BN-WH) | 22 | 14401 |
| 2 | VH411 (VT-GN) | 20 | 14B324 |
| 2 | VH441 (WH-BN) | 22 | 14401 |
| 3 | RH111 (GY-BU) | 20 | 14B324 |
| 3 | RH111 (GY-BU) | 22 | 14401 |
| 4 | * | * | |
| 5 | CH213 (BN-GN) | 20 | 14B324 |
| 5 | CH213 (BN-GN) | 22 | 14401 |
| 6 | CH212 (BU-OG) | 20 | 14B324 |
| 6 | CH212 (BU-OG) | 22 | 14401 |
| Available Pigtail Kits | |
|---|---|

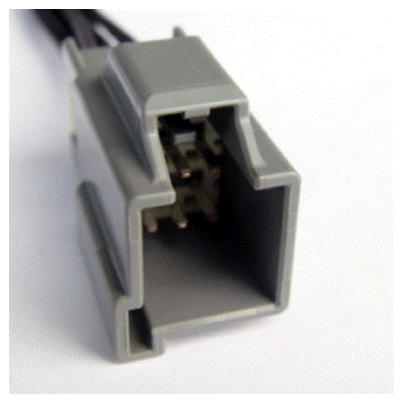

| Pigtail Kit Part Number WPT-444 | Service Part Number: 3U2Z-14S411-NBA Gauge: 16 Pin material: Tin Cavities: 6 Vehicle Uses:
|

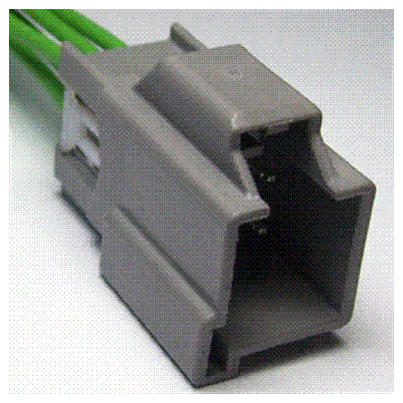

| Pigtail Kit Part Number WPT-1299 | Service Part Number: 3U2Z-14S411-NBB Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses:
|
