Inline Connector End View (C238)

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

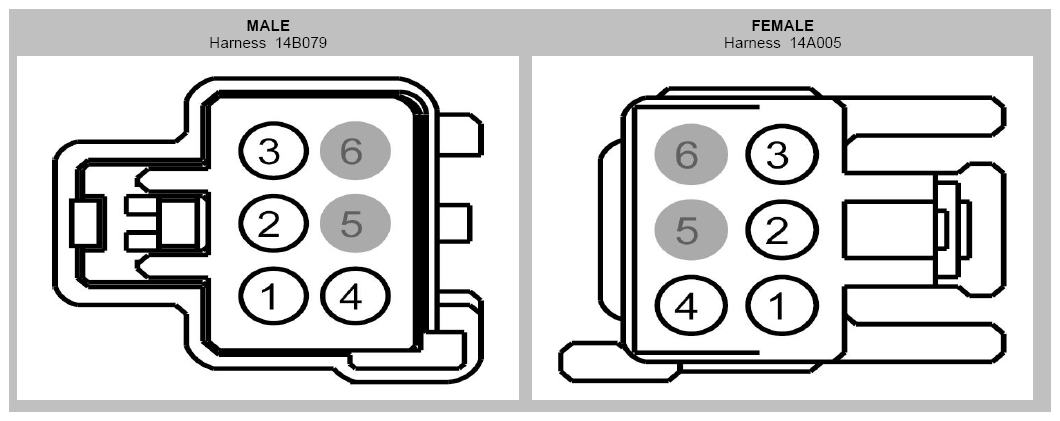

Fig 1: Identifying Inline Connector End View (C238)

G08748793

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Qualifier
1	HYA01 (OG-GN)	14
2	HYA02 (OG-WH)	14
3	LYA03 (YE-VT)	22
4	RYA03 (BU-BN)	22
5	*	*
6	*	*

Available Pigtail Kits

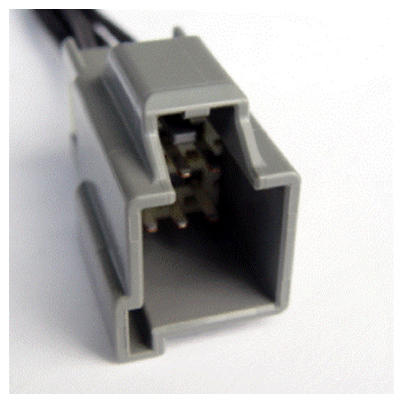

Pigtail Kit Part Number WPT-444	Service Part Number: 3U2Z-14S411-NBA Gauge: 16 Pin material: Tin Cavities: 6 Vehicle Uses: Element - Heated Seat Lamp - CHMSL (Center High Mount Stop Lamp) Lamp - Courtesy - Footwell Lamp - Park/Turn/Stop Lamp - Park/Turn/Stop/Reverse - Inline (Male) Motor - Adjustable Pedal Switch - Gear Shift Select/Neutral Safety Switch - Multifunction

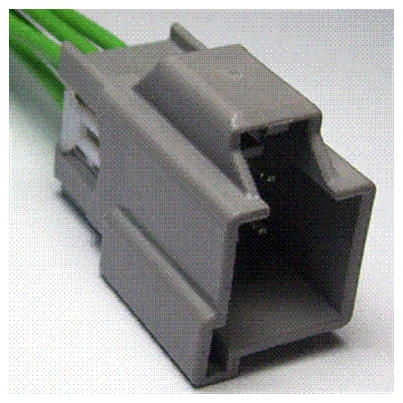

Pigtail Kit Part Number WPT-1299	Service Part Number: 3U2Z-14S411-NBB Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses: Connector - Inline Element - Heated Seat Inverter - DC to AC Lamp - CHMSL (Center High Mount Stop Lamp) Lamp - Courtesy - Footwell Lamp - License Lamp - Park/Turn/Stop Lamp - Top Finish Panel Motor - Adjustable Pedal Switch - Gear Shift Select/Neutral Safety Switch - Multifunction
