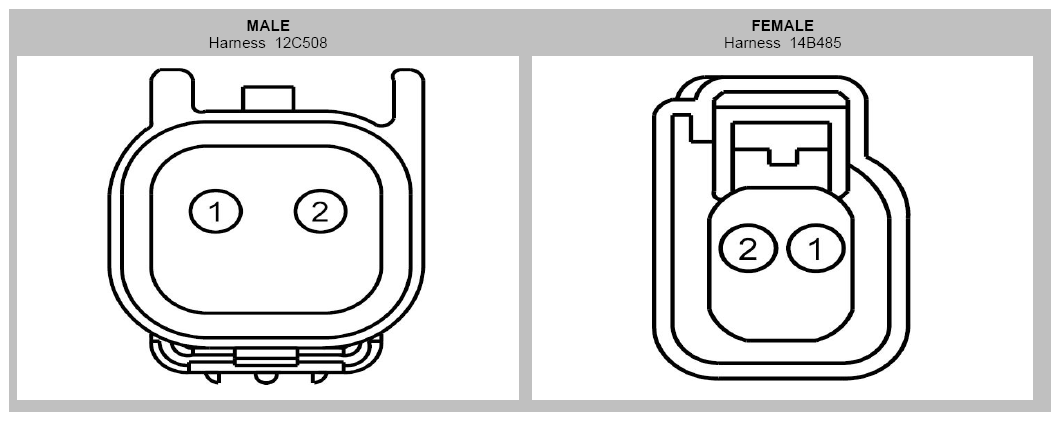

Inline Connector End View (C192)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | VE712 (BU-GY) | 18 | 14B485 - late production |
| 1 | VE712 (BU-GY) | 20 | 12C508 |
| 1 | VE712 (BU-GY) | 20 | 14B485 - early production |
| 2 | RE405 (GN-WH) | 18 | 14B485 - late production |
| 2 | RE405 (GN-WH) | 20 | 12C508 |
| 2 | RE405 (GN-WH) | 20 | 14B485 - early production |

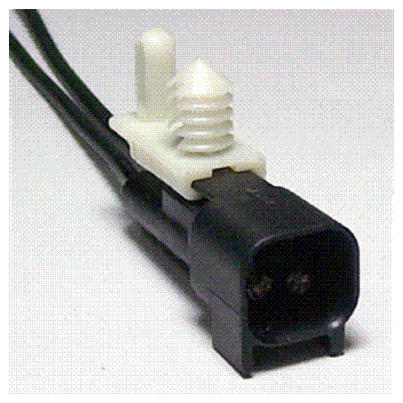

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1186 | Service Part Number: BU2Z-14S411-AKA Gauge: 16 Pin material: Tin (greased) Cavities: 2 Vehicle Uses:
|
