Inline Connector End View (C133)

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

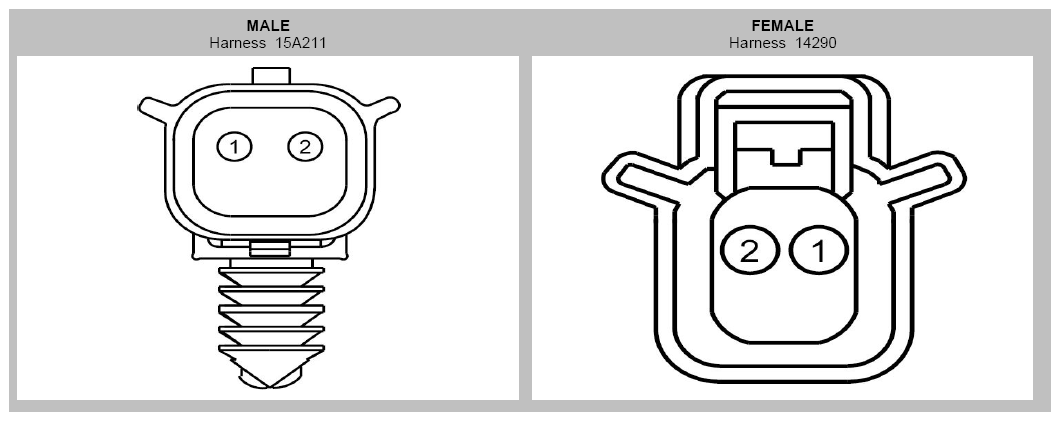

Fig 1: Identifying Inline Connector End View (C133)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Qualifier
1	GD120 (BK-GN)	20
2	CLF12 (BN-YE)	20
