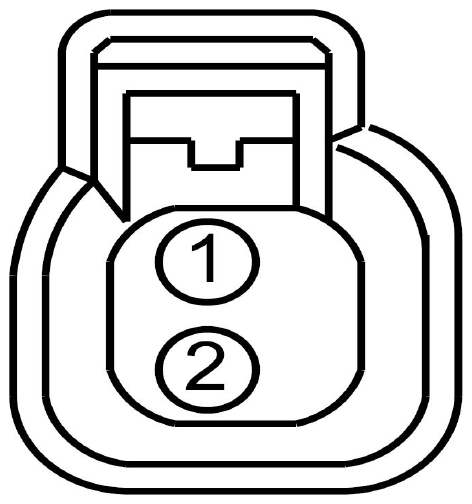

Horn Connector End View (C131)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | GD123 (BK-GY) | 20 | GROUND - FENDER FRONT RIGHT | |
| 2 | SRH01 (YE-RD) | 14 | RELAY - HORN |

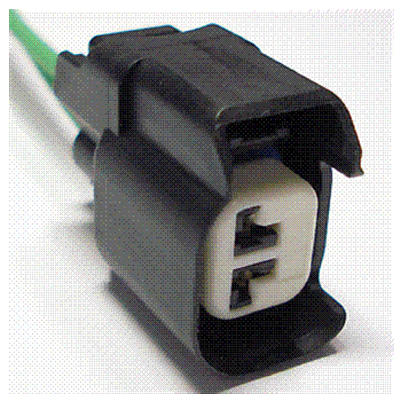

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1051 | Service Part Number: 5U2Z-14S411-ZB Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses
|
